  7. IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp

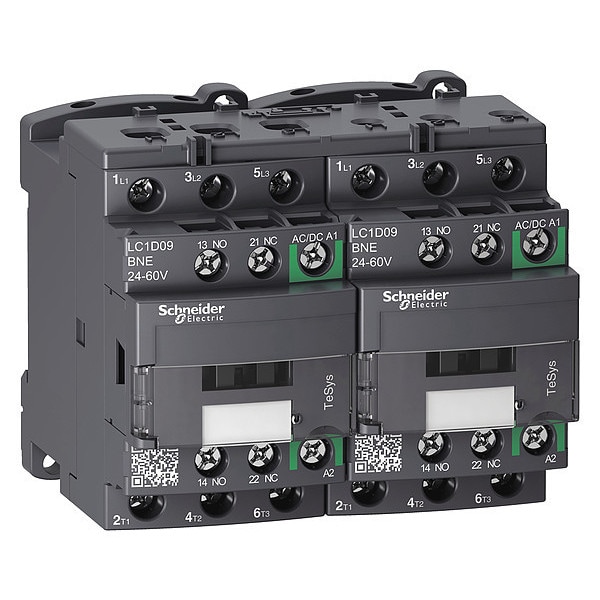

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp LC2D09BNE - main

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D09BNE

  • Zoro # G6043541

product price:  $201.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D09BNE
Zoro #
G6043541
UPC #
785901765448
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
3.39 in
Overall Height
3.03 in
Overall Width
3.54 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
7 1/2 hp
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
TeSys
Reversing
Yes
Series
TeSys Deca
Watts Loss
0.6W
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Environmental Attributes
Mercury Free, Pollution Degree 3
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Signalling Circuit Frequency
25 to 400 Hz
IP Rating
IP20
Hold VA
0.9 VA
Non-Overlap Time
1.5 ms
Rated Insulation Volts
690V
Fire Rating
UL 94 V1
Impulse Withstand Voltage
6 kV
Overvoltage Category
CAT III
Impedance
2.5 mOhm
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Inrush VA
15 VA
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415V AC 50 Hz), 4 kW (at 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz)
Application
Motor Control, Resistive Load
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Net Weight
0.783 kg
Operating Speed
3600 cycles per hr
Rated Breaking Capacity
250 A @ 440V
Switching Current
5 mA (Signalling Circuit)
Electrical Durability
2.4 Mcycles (8 A, AC-3, Less than 440 V); 0.6 Mcycles (25 A, AC-1, Less than 440 V)
Tightening Torque
1.7 Nm
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Mechanical Durability
15 Mcycles
Includes Protective Cover
Yes
Switching Voltage
17 V (Signalling Circuit)
Mechanical Operating Durability
15,000,000
Frequency
50/60 Hz
Horsepower @ Three Phase - 240V AC
2 hp
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 208V AC
2 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 240V AC
1 hp
Full Load Current - Resistive
20 A
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Electrical Operating Durability
2,400,000, 600,000
Includes Auxiliary Contacts
Yes
Number of Normally Open Main Contacts
3
Minimum Operating Temperature
-40 Degrees F
Full Load Current - Inductive
9:00 AM
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Mounting Style
DIN Rail, Plate
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
1/3 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing, IEC-style contactor rated for operation with motor control and resistive loads within specified parameters. It features a 24–60 V AC/DC coil and 1NO/1NC auxiliary contacts, with screw clamp terminals for wiring. The device is part of the TeSys Deca series and is compatible with IEC standard mounting configurations as specified, mounted on DIN rails or plates.

Poles: 3; Reversing: Yes

  • Coil Voltage: 24–60 V AC/DC
  • Auxiliary Contacts: 2 total (1NO/1NC)
  • Electrical Connection: Screw Clamp Terminals
  • Enclosure/NEMA: No Enclosure; IP20
  • Mounting: DIN Rail, Plate; Mounts On: Plate, Rail
  • Rated for operation up to 690 V AC within specified conditions
  • Full Load Currents: 9 A (Inductive), 20 A (Resistive)
  • Series/Frame: TeSys Deca
  • Frequency: 50/60 Hz
  • Rated Making Capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • Electrical Durability: tested for electrical durability under specified load conditions; actual lifespan may vary based on usage
  • Mechanical Durability: 15 Mcycles
  • Inrush VA / Holding VA: 15 VA / 0.9 VA
  • Impulse Withstand Voltage: 6 kV
  • Impedance: 2.5 mΩ
  • Auxiliary/Protection: Includes Auxiliary Contacts: Yes; Includes Protective Cover: Yes; Embedded Surge Suppressor: No
  • Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
  • Dimensions: Width 3.54 in; Depth 3.39 in; Height 3.03 in
  • Weight: 0.783 kg
  • Rated to operate within the specified temperature ranges; actual performance may vary depending on environmental conditions
  • Other: Normal Operation Temperature Range, Shock: 15 G (Closed), 10 G (Open); Vibration: 4 G (Closed), 2 G (Open)
