  7. IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp

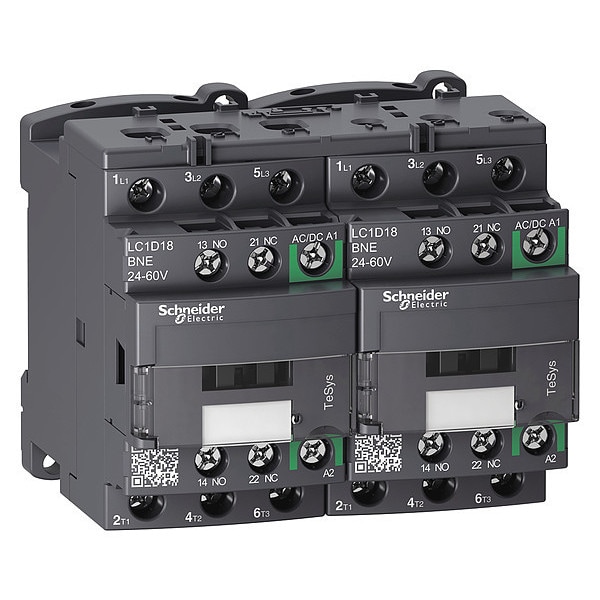

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp LC2D18BNE - main

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D18BNE

  • Zoro # G6033428

product price:  $238.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D18BNE
Zoro #
G6033428
UPC #
-
Country of Origin
France

Dimensions

Overall Depth
3.39 in
Overall Height
3.03 in
Overall Width
3.54 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Reversing
Yes
HP @ 3 Phase - 575V
15 hp
Series
TeSys Deca
IP Rating
IP20
Frequency
50/60 Hz
Full Load Current - Inductive
18 A
Horsepower @ Three Phase - 208V AC
5 hp
Embedded Surge Suppressor
No
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Electrical Operating Durability
2,200,000, 900,000
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
15,000,000
Number of Normally Open Main Contacts
3
Horsepower @ Single Phase - 120V AC
1 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 480V AC
10 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 600V AC
15 hp
Contactor Style
IEC
Horsepower @ Single Phase - 240V AC
3 hp
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Plate
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Application
Motor Control, Resistive Load
Switching Voltage
17 V (Signalling Circuit)
Overvoltage Category
CAT III
Fire Rating
UL 94 V1
Max. Operating Watts
4 kW (at 220 to 230V AC 50 Hz), 7.5 kW (at 380 to 400V AC 50 Hz), 9 kW (at 415V AC 50 Hz), 9 kW (at 440V AC 50 Hz), 10 kW (at 500V AC 50 Hz), 10 kW (at 660 to 690V AC 50 Hz)
Net Weight
0.803 kg
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Breaking Capacity
300 A @ 440V
Includes Protective Cover
Yes
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Insulation Volts
690V
Environmental Attributes
Mercury Free, Pollution Degree 3
Rated Short-Time Withstand Current
40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Operating Speed
3600 cycles per hr
Signalling Circuit Frequency
25 to 400 Hz
Tightening Torque
1.7 Nm
Inrush VA
15 VA
Mechanical Durability
15 Mcycles
Hold VA
0.9 VA
Impulse Withstand Voltage
6 kV
Watts Loss
0.6W
Switching Current
5 mA (Signalling Circuit)
Electrical Durability
2.2 Mcycles (15 A, AC-3, Less than 440 V); 0.9 Mcycles (32 A, AC-1, Less than 440 V)
Non-Overlap Time
1.5 ms
Impedance
2.5 mOhm
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
Full Load Current - Resistive
32 A
Conventional Free Air Thermal Current
32 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)

Description

The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching various types of loads within specified ratings. The unit is compact and modular and is rated according to applicable utilization categories, commonly used in control panels where standardized sizing and interchangeability are required. This model is a 3-pole reversing type with a coil voltage of 24–60 V AC/DC, auxiliary contacts configured as 1NO/1NC, and screw clamp terminals.

Coil voltage: 24–60 V AC/DC

  • Poles and auxiliary contacts: 3 poles; 2 auxiliary contacts (1NO/1NC)
  • Reversing: includes reversing functionality (if applicable)
  • Main contact rating: 32 A resistive, 18 A inductive
  • rated making capacity as specified under standard testing conditions
  • rated for operation at voltages up to 690 V within specified parameters
  • Frequency: 50/60 Hz
  • Enclosure/IP: enclosure rating is IP20; no additional enclosure provided
  • Mounting/installation: designed for mounting on DIN rail or plate according to installation instructions
  • Connection: equipped with screw clamp terminals suitable for wiring within recommended torque limits
  • Series/frame: TeSys Deca (TeSys)
  • Durability: Electrical 2,200,000 cycles; 900,000 cycles; Mechanical 15 Mcycles
  • Electrical characteristics: Hold 0.9 VA; Inrush 15 VA
  • Dimensions and weight: Depth 3.38 in (overall ~3.39 in); Height 3.03 in; Width 3.54 in; Net weight 0.803 kg
  • Standards and ratings: CAT III; 690 V; UL 94 V1; Standards include CCC, CSA, UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1, among others
  • Protective features: Embedded surge suppressor: No; Protective cover: Yes
  • Additional: Impulse withstand: 6 kV; Pollution degree: 3; Mercury free; includes reversing functionality (if applicable)
