- Item

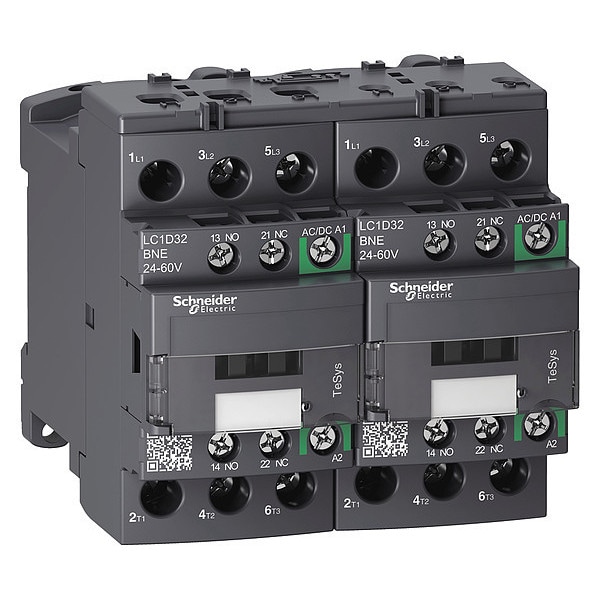

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V-60V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 32 A
- Full Load Amps-Resistive
- 50 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- HP @ 3 Phase - 575V
- 25 hp
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- Yes
- Frame / Series / Class / Code
- TeSys
- Series
- TeSys Deca
- IP Rating
- IP20
- Full Load Current - Resistive
- 50 A
- Number of Normally Open Main Contacts
- 3
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower @ Single Phase - 120V AC
- 2 hp
- Mechanical Operating Durability
- 15,000,000
- Contactor Style
- IEC
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Mounting Style
- DIN Rail, Plate
- Frequency
- 50/60 Hz
- Electrical Operating Durability
- 2,100,000, 900,000
- NEMA Enclosure Rating
- No Enclosure
- Full Load Current - Inductive
- 32 A
- Horsepower @ Three Phase - 600V AC
- 25 hp
- Horsepower @ Three Phase - 480V AC
- 20 hp
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Maximum Voltage Rating
- 690V AC
- Maximum Operating Temperature
- 140 Degrees F
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Embedded Surge Suppressor
- No
- Electrical Durability
- 2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V)
- Includes Protective Cover
- Yes
- Switching Current
- 5 mA (Signalling Circuit)
- Rated Breaking Capacity
- 550 A @ 440V
- Rated Insulation Volts
- 690V
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Impulse Withstand Voltage
- 6 kV
- Max. Operating Watts
- 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415V AC 50 Hz), 15 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz)
- Watts Loss
- 0.6W
- Switching Voltage
- 17 V (Signalling Circuit)
- Fire Rating
- UL 94 V1
- Mechanical Durability
- 15 Mcycles
- Signalling Circuit Frequency
- 25 to 400 Hz
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit)
- Operating Time
- 45 to 55 ms (Closing), 20 to 90 ms (Opening)
- Fuse Amps
- 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
- Impedance
- 2 mOhm
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Non-Overlap Time
- 1.5 ms
- Net Weight
- 0.923 kg
- Operating Speed
- 3600 cycles per hr
- Shock Resistance
- 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
- Inrush VA
- 15 VA
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
- Application
- Motor Control, Resistive Load
- Hold VA
- 0.9 VA
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Overvoltage Category
- CAT III
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)
