- Item

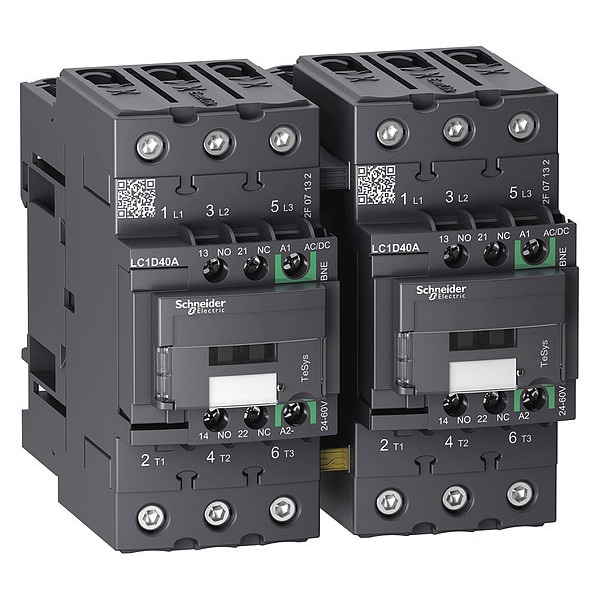

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V-60V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 40 A
- Full Load Amps-Resistive
- 60 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- HP @ 3 Phase - 575V
- 30 hp
- Enclosure NEMA Rating
- No Enclosure
- Frame / Series / Class / Code
- TeSys
- Reversing
- Yes
- Series
- TeSys Deca
- IP Rating
- IP20
- Full Load Current - Inductive
- 40 A
- Maximum Operating Temperature
- 140 Degrees F
- Full Load Current - Resistive
- 60 A
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Contactor Style
- IEC
- Number of Normally Open Main Contacts
- 3
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower @ Three Phase - 600V AC
- 30 hp
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Includes Auxiliary Contacts
- Yes
- Embedded Surge Suppressor
- No
- Frequency
- 50/60 Hz
- Maximum Voltage Rating
- 690V AC
- Electrical Operating Durability
- 2,000,000, 700,000
- Horsepower @ Three Phase - 480V AC
- 30 hp
- Mechanical Operating Durability
- 6,000,000
- NEMA Enclosure Rating
- No Enclosure
- Mounting Style
- DIN Rail, Plate
- Mechanical Durability
- 6 Mcycles
- Overvoltage Category
- CAT III
- Includes Protective Cover
- Yes
- Net Weight
- 2.154 kg
- Watts Loss
- 0.7W
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Fire Rating
- UL 94 V1
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Inrush VA
- 15 VA
- Switching Current
- 5 mA (Signalling Circuit)
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Electrical Durability
- 2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V)
- Fuse Amps
- 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
- Non-Overlap Time
- 1.5 ms
- Hold VA
- 1 VA
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Insulation Volts
- 690V
- Operating Speed
- 3600 cycles per hr
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Impulse Withstand Voltage
- 6 kV
- Impedance
- 1.5 mOhm
- Operating Time
- 55 to 65 ms (Closing), 20 to 120 ms (Opening)
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit)
- Application
- Motor Control, Resistive Load
- Switching Voltage
- 17 V (Signalling Circuit)
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Max. Operating Watts
- 11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz)
- Rated Breaking Capacity
- 800 A @ 440V
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)
