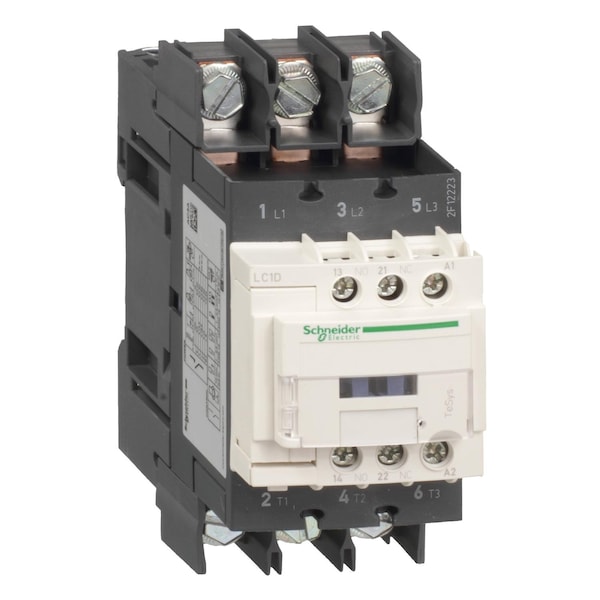

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Box Lug

  • Mfr # LC1D40A6B7

  • Zoro # G0849619

product price:  $293.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Box Lug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D40A6B7
Zoro #
G0849619
UPC #
785901736806
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
55 mm
Overall Depth
120 mm
Overall Height
122 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Box Lug
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CSA, GOST, UL, CCC, THIEC 60068-2-30
HP @ 3 Phase - 575V
30 hp
Series
LC1D
Includes
Everlink Power Connections
Application
Motor Control, Resistive Load
Features
Without Built-In Suppressor Module
Switching Current
5 mA (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Shock Resistance
10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Watts Loss
4 to 5W
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Operating Speed
3600 cycles per hr
Tightening Torque
1.7 Nm (Control Circuit), 2.5 to 6 Nm (Power Circuit)
Mechanical Durability
6 Mcycles
Non-Overlap Time
1.5 ms
Rated Short-Time Withstand Current
320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Insulation Volts
600/690V
Hold VA
13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
Includes Protective Cover
Yes
Inrush VA
140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C)
Operating Time
4 to 19 ms (Opening), 12 to 26 ms (Closing)
Overvoltage Category
CAT III
Max. Operating Watts
18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 220 to 230V AC 50/60 Hz AC-3), 22 kW (at 415 to 440V AC 50/60 Hz AC-3), 22 kW (at 500V AC 50/60 Hz AC-3), 30 kW (at 660 to 690V AC 50/60 Hz AC-3), 9 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 220 to 230V AC 50/60 Hz AC-3e), 22 kW (at 415 to 440V AC 50/60 Hz AC-3e), 22 kW (at 500V AC 50/60 Hz AC-3e), 30 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Fuse Amps
10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
Impulse Withstand Voltage
6 kV
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
Fire Rating
UL 94 V1
Impedance
1.5 mOhm
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Rated Breaking Capacity
800 A @ 440V
Net Weight
0.85 kg
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Electrical Durability
1.4 Mcycles (60 A, AC-1, Less than 440 V); 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.5 Mcycles (40 A, AC-3e, Less than 440 V)
Signalling Circuit Frequency
25 to 400 Hz
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
IP Rating
IP20
Full Load Current - Inductive
40 A
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Single Phase - 240V AC
5 hp
Full Load Current - Resistive
60 A
Horsepower @ Three Phase - 208V AC
10 hp
Maximum Voltage Rating
690V AC, 300V DC
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch rated for operation within the specified voltage ranges. It is compatible with 24 V AC coil ratings and a 1NC/1NO auxiliary contact arrangement, with box-lug terminations. This device is suitable for use in motor control and resistive load applications within specified parameters and is suitable for panel installation where standardized sizing and interchangeability are needed.

Poles: 3

  • Coil voltage: 24 V AC
  • Auxiliary contact form: 1NC/1NO
  • Reversing capability: non-reversing
  • Electrical connection: Box Lug
  • Mounting: Plate, Rail
  • IP rating: IP20
  • Net weight: 0.85 kg
  • Dimensions (H x W x D): 122 mm x 55 mm x 120 mm
  • Inrush VA: 140-160 VA
  • Hold VA: 13 VA at 60 Hz 20°C; 15 VA at 50 Hz 20°C
  • Max operating voltage: Rated for operation up to 690 V AC and 300 V DC within specified limits
  • Rated insulation volts: Insulation rated for voltages up to 600/690 V as per specifications
  • Rated making capacity: Capable of handling currents up to these ratings under normal conditions; does not guarantee performance under all circumstances
  • Shock resistance: Meets tested shock resistance levels according to standards; does not imply safety under all impacts or misuse
  • Vibration resistance: Meets vibration testing standards; does not guarantee performance in all vibrational environments
  • Fire rating: Complies with UL94V1 flammability standard; does not indicate fireproof properties or safety guarantees
  • Standards: Conforms to these standards when used correctly within specified conditions
  • Inclusions: Everlink Power Connections; Protective Cover included Items provided are as listed; no implied additional features or warranties
  • Working height: Designed for use at high altitudes but does not guarantee optimal function beyond typical operational environments
