- MFR #
- LC1D50B7
- Zoro #
- G0569381
- UPC #
- 785901420910
- Country of Origin
- Czechia
- Item

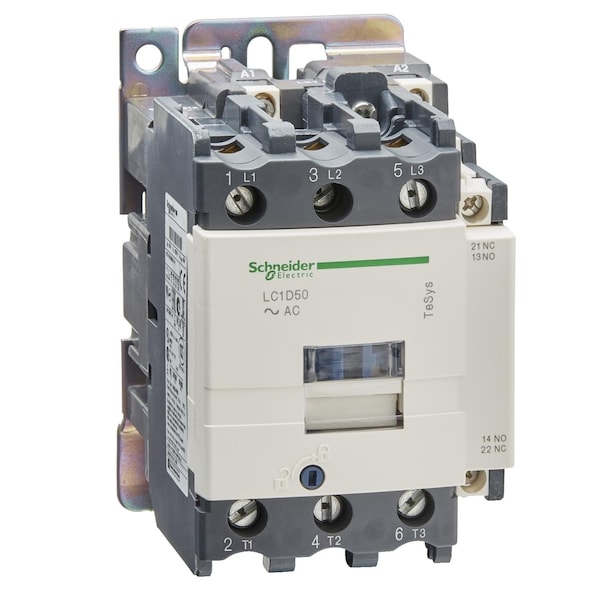

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw
- Number of Auxillary Contacts
- 2
- Standards
- EN 60947-5-1, UL 508, IEC 60947-4-1, IEC 60947-5-1, GOST, GL, DNV, LROS, CCC, RINA, BV, UKCA, UL
- Series
- LC1D
- HP @ 3 Phase - 575V
- 40 hp
- Features
- Without Built-In Bi-Directional Peak Limiting Diode Suppressor
- Application
- Resistive Load
- Overvoltage Category
- CAT III
- Impulse Withstand Voltage
- 6 kV
- Max. Operating Watts
30 kW (at 440V AC 50 Hz) AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3), 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW(at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 1000V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3)
- Switching Current
- 5 mA (Control Circuit)
- IP Rating
- IP2X
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
- Mechanical Durability
- 6 Mcycles
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free
- Hold VA
- 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
- Insulation Resistance Range
- Greater Than 10 Mohms (Control Circuit)
- Operating Time
- 4 to 19 ms (Opening), 12 to 26 ms (Closing)
- Inrush VA
- 140 VA (at 20°C), 160 VA (at 20°C)
- Switching Voltage
- 17 V (Control Circuit)
- Rated Making Capacity
- 1000 A @ 440V (Power Circuit), 140 A (AC Control Circuit)
- Operating Speed
- 3600 cycles per hr
- Includes Protective Cover
- Yes
- Fuse Amps
- 100 A (Type 2 Power Circuit), 10 A (Control Circuit), 125 A (Type 1 Power Circuit)
- Watts Loss
- 4 to 5W
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Net Weight
- 1.4 kg
- Non-Overlap Time
- 1.5 ms
- Shock Resistance
- 10 G for 11 ms (Contactor Open)
- Fire Rating
- UL 94 V1
- Rated Breaking Capacity
- 1000 A @ 440V
- Control Circuit Voltage Limits
- Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
- Rated Insulation Volts
- 600V, 690V
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for control circuit; 80 A (at 140°F (60°C)) for power circuit
- Pole Contact Composition
- 3 NO
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Power Dissipation Per Pole
- 3.7 W AC-3e; 9.6 W AC-1; 6.3 W AC-3
- Climatic Withstand
- IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Rated Operational Current
- 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 65 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit
- Heat Dissipation
- 4 to 5 W at 50/60 Hz for control circuit
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz
- Utilisation Category
- AC-1; AC-2; AC-3e; AC-1
- Control Circuit Voltage
- 120 V AC 50/60 Hz
- Inrush Power in VA
- 140 VA cos phi 0.75 (at 68°F (20°C)); 160 VA cos phi 0.75 (at 68°F (20°C))
- Mechanical Robustness
- Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor opened 10 Gn for 11 ms)
- Protective Cover
- With
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Control Circuit Type
- AC 50/60 Hz
- Full Load Current - Inductive
- 50 A
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Horsepower @ Three Phase - 240V AC
- 15 hp
- Horsepower @ Three Phase - 208V AC
- 15 hp
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Full Load Current - Resistive
- 80 A
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Voltage Rating
- 690V AC
- Mounting Style
- Plate, Rail
