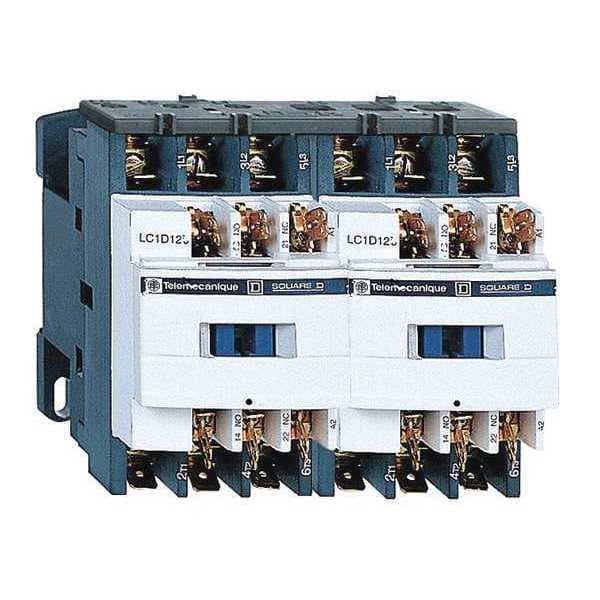

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Quick Connect

  • Mfr # LC2D099B7

  • Zoro # G0568541

product price:  $278.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Quick Connect
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC2D099B7
Zoro #
G0568541
UPC #
785901635833
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
3.03 in
Overall Width
3.54 in
Overall Depth
3.39 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Quick Connect
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Series
TeSys Deca
Frame / Series / Class / Code
TeSys
Reversing
Yes
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
7 1/2 hp
Switching Voltage
17 V (Signalling Circuit)
Net Weight
0.687 kg
Watts Loss
2 to 3W
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Rated Insulation Volts
600/690V
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Inrush VA
70 VA
Electrical Durability
0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415 to 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Rated Breaking Capacity
250 A @ 440V
Fire Rating
UL 94 V1
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Non-Overlap Time
1.5 ms
Includes Protective Cover
Yes
Fuse Amps
25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Switching Current
5 mA (Signalling Circuit)
IP Rating
IP20
Impulse Withstand Voltage
6 kV
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Mechanical Durability
15 Mcycles
Impedance
2.5 mOhm
Signalling Circuit Frequency
25 to 400 Hz
Operating Speed
3600 cycles per hr
Application
Motor Control, Resistive Load
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Overvoltage Category
CAT III
NEMA Enclosure Rating
No Enclosure
Number of Normally Open Main Contacts
3
Full Load Current - Inductive
9:00 AM
Mechanical Operating Durability
15,000,000
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Horsepower @ Three Phase - 480V AC
5 hp
Electrical Operating Durability
2,000,000, 600,000
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
No
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 120V AC
1/2 hp
Frequency
50/60 Hz
Full Load Current - Resistive
25 A
Mounting Style
DIN Rail, Plate
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Horsepower @ Three Phase - 240V AC
2 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 208V AC
2 hp
Minimum Operating Temperature
-40 Degrees F
Utilisation Category
AC-3; AC-1
Rated Operational Voltage
Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Conventional Free Air Thermal Current
10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit
Ambient Air Temperature For Storage
-76 to 176°F (-60 to 80°C)
Front Cover
With
Rated Operational Current
9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit
Protective Treatment
TH IEC 60068-2-30
Climatic Withstand
IACS E10; IEC 60947-1 Annex Q category D
Interlocking Type
Mechanical
Control Circuit Type
AC 50/60 Hz
Power Dissipation Per Pole
0.2 W AC-3; 1.56 W AC-1
Pollution Degree
3
Ambient Air Temperature For Operation
-40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
Operating Altitude
0 to 9842.52 ft (0 to 3000 m)
Fire Resistance
1562°F (850°C) IEC 60695-2-1
Product Name
TeSys D; TeSys Deca
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Device Presentation
Preassembled with reversing power busbar
Maximum Operating Rate
3600 cyc/h 140°F (60°C)
Inrush Power in VA
70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
Heat Dissipation
2 to 3 W 50/60 Hz
Contactor Application
Motor control; Resistive load
Control Circuit Voltage
24 V AC 50/60 Hz
Mechanical Robustness
Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms
Pole Contact Composition
3 NO

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a reversing contactor from the TeSys Deca series. This device is primarily used for motor control and resistive load applications. It operates with an ambient air temperature ranging from -40 to 140°F (-40 to 60°C) and can be stored at temperatures between -76 to 176°F (-60 to 80°C). The contactor comes preassembled with a reversing power busbar, prepared for use following the manufacturer's instructions. Its coil voltage stands at 24V AC, while its maximum operating rate reaches up to 3600 cycles per hour.

Key features of this product include:

  • An auxiliary contact configuration of 1NO/1NC.
  • A mechanically linked auxiliary contacts type conforming to IEC standards.
  • Faston terminals for both power circuit and control circuit connections.
  • Full load amps for inductive loads stand at 9A, while resistive loads are rated at 25A.
  • The device's depth measures approximately at 3.39 inches, with a height around about equaling roughly the same size as its height (3.54 inches).
  • Fire resistance rating tested up to 1562°F (850°C) under conditions specified by IEC 60695-2-1.
  • A maximum operating temperature of 140 degrees Fahrenheit.
  • -The product's weight is approximately .687 kg.
