  7. IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp

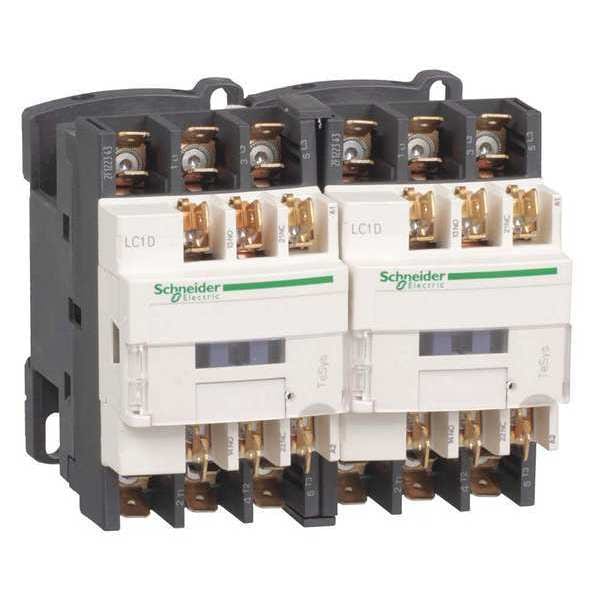

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp LC2D129B7 - main

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D129B7

  • Zoro # G0849086

product price:  $352.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D129B7
Zoro #
G0849086
UPC #
785901696162
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
86 mm
Overall Width
90 mm
Overall Height
77 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
HP @ 3 Phase - 575V
10 hp
Series
LC2D
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Net Weight
0.697 kg
Signalling Circuit Frequency
25 to 400 Hz
Switching Voltage
17 V (Signalling Circuit)
Non-Overlap Time
1.5 ms
Inrush VA
70 VA
IP Rating
IP20
Rated Insulation Volts
600/690V
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Watts Loss
2 to 3W
Rated Breaking Capacity
250 A @ 440V
Application
Motor Control, Resistive Load
Includes Protective Cover
Yes
Switching Current
5 mA (Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Impedance
2.5 mOhm
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Fire Rating
UL 94 V1
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Overvoltage Category
CAT III
Operating Speed
3600 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Mechanical Durability
15 Mcycles
Electrical Durability
2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V)
Max. Operating Watts
3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz)
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Horsepower @ Single Phase - 240V AC
2 hp
Full Load Current - Inductive
12:00 AM
Full Load Current - Resistive
25 A
Horsepower @ Three Phase - 240V AC
3 hp
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor, Series LC2D, is an electrically operated switching device rated for operation with a 24 V AC coil. It features reversing action and a 3-pole configuration, and includes a 1NC/1NO auxiliary contact. The unit uses screw clamp terminals and is designed for mounting on Plate or Rail; it includes an IP20 rating as specified.

Key features

  • Action: Reversing
  • Poles: 3
  • Auxiliary Contact Form: 1NC/1NO
  • Coil Voltage: 24 V AC
  • Application: Motor Control, Resistive Load
  • Terminal Connection: Screw Clamp
  • Mounting: Plate, Rail
  • Series: LC2D
  • IP Rating: IP20
  • Includes Protective Cover: Yes
  • Rated voltage: rated for use within the specified voltage ranges
  • Weight: 0.697 kg
