Shop SCHNEIDER ELECTRIC

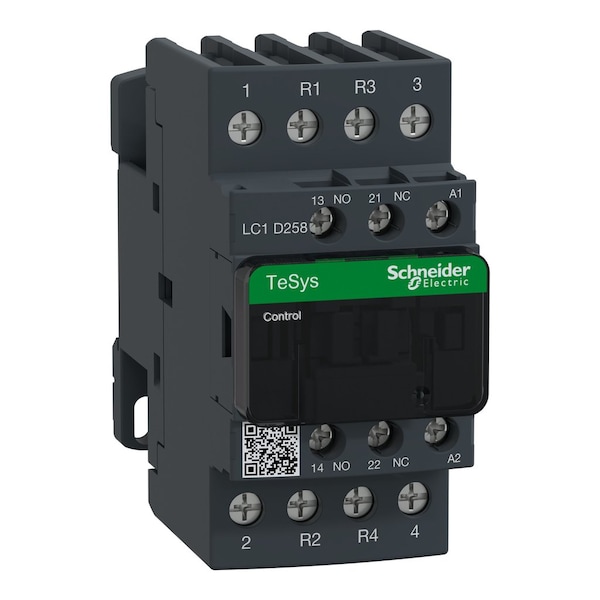

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D258U7

  • Zoro # G810070191

product price:
$
253.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D258U7
Zoro #
G810070191
UPC #
3389110294439
Country of Origin
Indonesia

Dimensions

Overall Depth
3.9 in
Overall Width
1.77 in
Overall Height
3.58 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
Series
TeSys Deca
IP Rating
IP20
Contactor Style
IEC
Frequency
50/60 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
Full Load Current - Inductive
40 A
Mechanical Operating Durability
15,000,000
Maximum Voltage Rating
690V AC
Embedded Surge Suppressor
No
Electrical Operating Durability
1,400,000 (AC-1)
Includes Auxiliary Contacts
Yes
Full Load Current - Resistive
200 A
Mounting Style
DIN Rail, Plate
Phase
Three

Description

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, non-reversing IEC-style device rated for switching within specified voltage and current ranges. It is designed for operation with a 240V AC control voltage and includes auxiliary contacts configured as 1NC/1NO (two auxiliary contacts in total). This compact contactor is rated for use in three-phase power systems within specified parameters and is intended for installation in control panel environments according to applicable standards.

Key features:

  • Coil voltage: 240V AC
  • Poles: 4
  • Phase: Three
  • Reversing capability: Non-Reversing
  • Auxiliary contacts: 2 total (1NC/1NO)
  • Terminal connection type: Screw Clamp
  • Mounting style: DIN Rail, Plate
  • Maximum voltage rating: 690V AC
  • IP rating: IP20
  • Frequency: 50/60 Hz
  • Mechanical operating durability: 15,000,000 cycles
  • Electrical operating durability: 1,400,000 (AC-1)
  • Full load current: Inductive 150 A; Inductive (load) 40 A; Resistive 200 A
  • Item: IEC Magnetic Contactor
  • Series: TeSys Deca
  • Standards: CSA/CAN/UL and IEC/EN listed (see full standards listing)
  • Dimensions: Depth 3.9 in; Height 3.58 in; Width 1.77 in
  • Auxiliary contact form: 1NC/1NO
