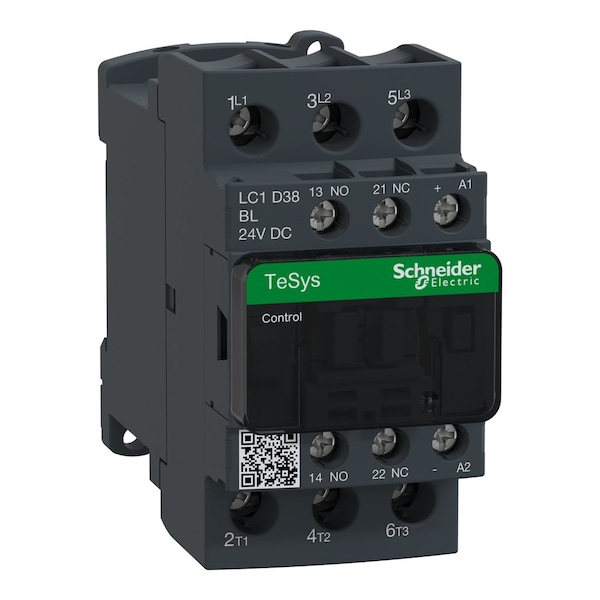

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp LC1D38BL - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D38BL

  • Zoro # G110070242

product price:  $286.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D38BL
Zoro #
G110070242
UPC #
3389110361896
Country of Origin
Indonesia

Dimensions

Overall Depth
3.98 in
Overall Width
1.77 in
Overall Height
3.35 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Electrical Operating Durability
1,400,000 (AC-1), 1,400,000 (AC-3), 1,400,000 (AC-3e)
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 240V AC
10 hp
Maximum Voltage Rating
690V AC
Frequency
50 Hz
Horsepower @ Three Phase - 208V AC
10 hp
Embedded Surge Suppressor
No
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
25 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Single Phase - 240V AC
5 hp
Phase
Three
Mechanical Operating Durability
30,000,000
Full Load Current - Resistive
200 A
Contactor Style
IEC
Full Load Current - Inductive
38 A

Description

The IEC Magnetic Contactor is a three-pole, non-reversing, coil-driven switching device used to control power circuits in accordance with IEC standards. It operates from a 24V DC coil and includes two auxiliary contacts (1NC/1NO) arranged as 2 contacts total. The unit uses screw clamp terminals and can be mounted on DIN Rail or Plate. It is part of the TeSys Deca series and is rated for operation within the specified voltage and IP rating parameters.

Coil voltage: 24V DC

  • Auxiliary contacts: 2 total (1NC/1NO)
  • Poles/Phase: 3 poles, three-phase
  • Reversing: Non-Reversing
  • Mounting/Terminals: DIN Rail, Plate; Screw Clamp
  • Maximum voltage rating: 690V AC; Frequency: 50 Hz; IP rating: IP20
  • Series/Item: TeSys Deca; IEC Magnetic Contactor
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Durability: Electrical 1,400,000 cycles; Mechanical 30,000,000 cycles
  • Full Load Amps: Inductive 150 A; Resistive 200 A
  • Full Load Current: Inductive 38 A; Resistive 200 A
  • Horsepower (various voltages): 5 hp (single phase 240V); 10 hp (three phase 208V/240V); 20 hp (three phase 480V); 25 hp (three phase 600V)
  • Embedded surge suppressor: No
  • Resistance properties: Fire Resistant, Insulation Resistant
  • Auxiliary contact form: 1NC/1NO
  • Overall dimensions: Depth 3.98 in; Height 3.35 in; Width 1.77 in
  • Item: IEC Magnetic Contactor
  • Terminal connection: Screw Clamp
