  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp

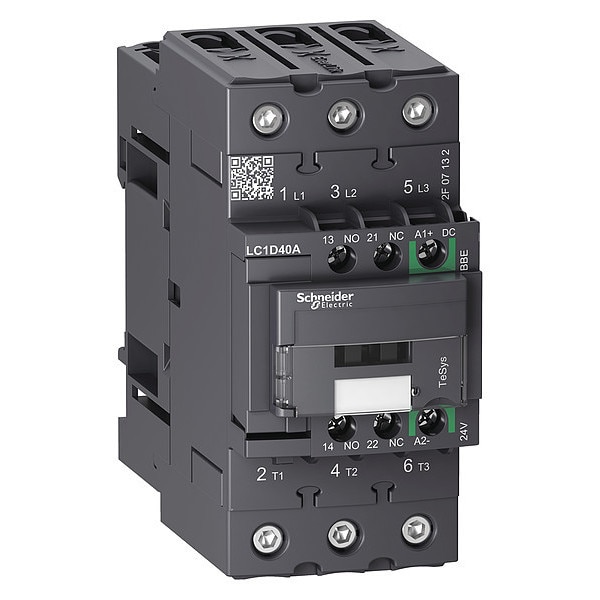

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp LC1D40ABBE - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D40ABBE

  • Zoro # G6523927

product price:  $234.37
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D40ABBE
Zoro #
G6523927
UPC #
785901765042
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
2.17 in
Overall Height
4.8 in
Overall Depth
4.72 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
30 hp
Reversing
No
Frame / Series / Class / Code
TeSys
Series
TeSys Deca Green
Includes
Everlink Power Connections
Net Weight
0.992 kg
Includes Protective Cover
Yes
Signalling Circuit Frequency
25 to 400 Hz
Electrical Durability
2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V); 2 Mcycles (35 A, AC-3e, Less than 440 V)
Switching Current
5 mA (Signalling Circuit)
Rated Short-Time Withstand Current
72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Overvoltage Category
CAT III
Impulse Withstand Voltage
6 kV
Fire Rating
UL 94 V1
Fuse Amps
80 A (Type 1 and 2 Power Circuit), 10 A (Signalling Circuit)
Features
Built-In Bi-Directional Peak Limiting
Watts Loss
0.5W
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts
690V
Mechanical Durability
6 Mcycles
Rated Breaking Capacity
800 A @ 440V
Impedance
1.5 mOhm
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Control Circuit Voltage Limits
Drop-Out DC: Less Than 0.1 Uc (at -40 to 70°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60°C), 1 to 1.2 Uc (at 60 to 70°C)
Environmental Attributes
Mercury Free, Pollution Degree 3
Switching Voltage
17 V (Signalling Circuit)
Operating Speed
3600 cycles per hr
Max. Operating Watts
11 kW (at 220 to 230V AC 50 Hz AC-3), 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 22 kW (at 415V AC 50 Hz AC-3), 22 kW (at 440V AC 50 Hz AC-3), 22 kW (at 500V AC 50 Hz AC-3), 30 kW (at 660 to 690V AC 50 Hz AC-3), 11 kW (at 220 to 230V AC 50 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 22 kW (at 415V AC 50 Hz AC-3e), 22 kW (at 440V AC 50 Hz AC-3e), 22 kW (at 500V AC 50 Hz AC-3e), 30 kW (at 660 to 690V AC 50 Hz AC-3e)
Non-Overlap Time
1.5 ms
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Making Capacity
800 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Application
Motor Control, Resistive Load
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
IP Rating
IP20
Horsepower @ Three Phase - 240V AC
10 hp
Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
2,000,000, 700,000
Horsepower @ Single Phase - 120V AC
3 hp
Full Load Current - Inductive
40 A
Contactor Style
IEC
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Single Phase - 240V AC
5 hp
Number of Normally Open Main Contacts
3
Full Load Current - Resistive
60 A
Horsepower @ Three Phase - 208V AC
10 hp
Phase
Three
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Frequency
50 Hz
Maximum Operating Temperature
140 Degrees F
Mounting Style
DIN Rail, Plate
Mechanical Operating Durability
6,000,000
Resistance Properties
Fire Resistant, Insulation Resistant
Embedded Surge Suppressor
No
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 600V AC
30 hp
Conventional Free Air Thermal Current
60 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)

Description

The item is a Schneider Electric IEC Magnetic Contactor from the TeSys Deca Green series. It is a 3-pole, non-reversing device with a 24 V DC coil and two auxiliary contacts (1NO/1NC). The control circuit uses screw clamp terminals, while the power circuit uses EverLink BTR connectors. It is rated for use with motor control and resistive loads within specified electrical parameters and is shipped without an integrated surge suppression device or enclosure.

Coil Voltage: 24 V DC

  • Poles / Main Contacts: 3 poles; 3 main contacts
  • Auxiliary Contacts: 2 total (1NO/1NC); Auxiliary Contact Configuration: 1NO/1NC
  • Control and Power Connections: Control Circuit – Screw Clamp Terminals; Power Circuit – EverLink BTR Screw Connectors; Includes Everlink Power Connections
  • Mounting: DIN Rail and Plate; Mounts On – Plate, Rail
  • Enclosure / Protection: No Enclosure; IP20
  • Electrical Ratings: Rated for operation up to 690V AC within specified conditions; Frequency 50/60 Hz
  • Load Capability: Rated for resistive loads up to 60 A and inductive loads up to 40 A under specified conditions
  • Short-Time Withstand Current: Power Circuit capable of withstanding short-term current surges up to 720 A as per applicable standards; Signalling Circuit up to 140 A
  • Making Capacity: has a making capacity of approximately 800 A at 440 V, subject to testing standards and conditions; AC Signalling 140 A; DC Signalling 250 A
  • Mechanical / Electrical Durability: Rated for mechanical durability of approximately six million cycles and electrical durability based on standard testing procedures
  • Environmental / Fire: Mercury Free; Pollution Degree 3; UL 94 V-1 flammability rating per standardized testing methods
  • Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
  • Dimensional / Weight: Width 2.17 in; Height 4.8 in; Depth 4.72 in; Net Weight 0.992 kg
  • Series / Reversing: Series TeSys Deca Green; Reversing: No (Non-Reversing)
  • Operating Conditions: Frequency 50 Hz; Phase: Three; Operating Speed 3600 cycles/hr; Non-Reversing
