Item

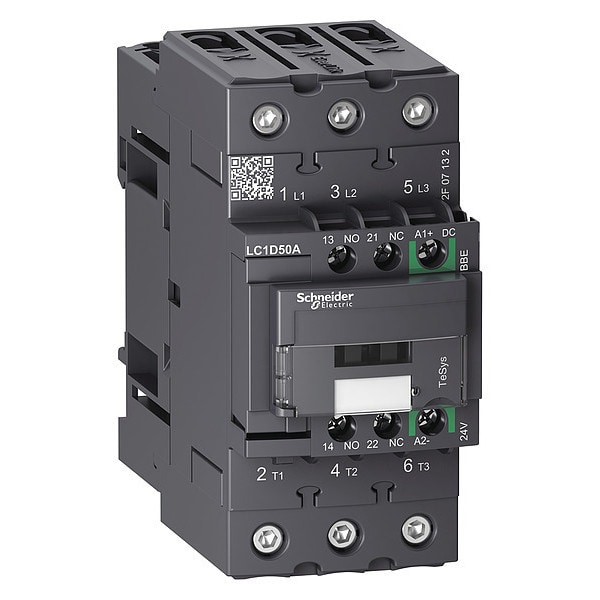

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
40 hp
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Includes
Everlink Power Connections
Horsepower @ Three Phase - 208V AC
15 hp
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Single Phase - 120V AC
3 hp
Mechanical Operating Durability
6,000,000
Maximum Voltage Rating
690V AC
Resistance Properties
Fire Resistant, Insulation Resistant
Number of Normally Open Main Contacts
3
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 600V AC
40 hp
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 240V AC
15 hp
Full Load Current - Resistive
80 A
Electrical Operating Durability
1,800,000, 500,000
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Minimum Operating Temperature
-40 Degrees F
Full Load Current - Inductive
50 A
Electrical Durability
1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V); 1.8 Mcycles (42 A, AC-3e, Less than 440 V)
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
Control Circuit Voltage Limits
Drop-Out DC: Less Than 0.1 Uc (at -40 to 70°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60°C), 1 to 1.2 Uc (at 60 to 70°C)
Application
Motor Control, Resistive Load
Impulse Withstand Voltage
6 kV
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts
690V
Environmental Attributes
Mercury Free, Pollution Degree 3
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Features
Built-In Bi-Directional Peak Limiting
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Includes Protective Cover
Yes
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Rated Breaking Capacity
900 A @ 440V
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Signalling Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Mechanical Durability
6 Mcycles
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit)
Rated Making Capacity
900 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Max. Operating Watts
15 kW (at 220 to 230V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3), 25 kW (at 415V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e)
Overvoltage Category
CAT III
Conventional Free Air Thermal Current
80 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
