- Item

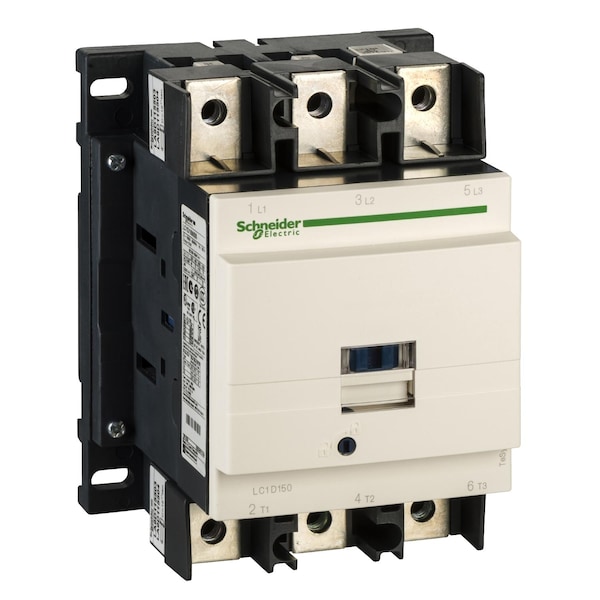

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 150 A
- Full Load Amps-Resistive
- 200 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Ring-Lug
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, GL, CSA, CCC, UL, DNV, LROS, RINA, BV, GOST, UKCA, CE, THIEC 60068-2-30
- Series
- LC1D, TeSys
- HP @ 3 Phase - 575V
- 125 hp
- Features
- With Integral Suppression Device
- Application
- Motor Control, Resistive Load
- Switching Current
- 5 mA (Signalling Circuit)
- Max. Operating Watts
40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V AC 50/60 Hz AC-4), 40 kW (at 220 to 230V AC 50/60 Hz AC-3e), 75 kW (at 380 to 400V AC 50/60 Hz AC-3e), 80 kW (at 415 to 440V AC 50/60 Hz AC-3e), 90 kW (at 500V AC 50/60 Hz AC-3e), 100 kW (at 660 to 690V AC 50/60 Hz AC-3e), 75 kW (at 1000V AC 50/60 Hz AC-3e)
- Net Weight
- 2.5 kg
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Rated Breaking Capacity
- 1400 A @ 440V
- Signalling Circuit Frequency
- 25 to 400 Hz
- Rated Short-Time Withstand Current
- 250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
- Control Circuit Voltage Limits
- Operational DC: 0.75 to 1.2 Uc (at -40 to 55°C), 1 to 1.2 Uc (at 55 to 70°C); Drop-Out DC: 0.15 to 0.4 Uc (at -40 to 70°C)
- IP Rating
- IP20
- Impulse Withstand Voltage
- 8 kV
- Operating Speed
- 1200 cycles per hr
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit)
- Fire Rating
- UL 94 V1
- Operating Time
- 20 to 35 ms (Closing), 40 to 75 ms (Opening)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Impedance
- 0.6 mOhm
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Mechanical Durability
- 8 Mcycles
- Switching Voltage
- 17 V (Signalling Circuit)
- Includes Protective Cover
- Yes
- Non-Overlap Time
- 1.5 ms
- Electrical Durability
- 0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V)
- Overvoltage Category
- CAT III
- Contactor Application
- Motor control; Resistive load
- Pollution Degree
- 3
- Power Dissipation Per Pole
- 24 W AC-1; 13.5 W AC-3; 13.5 W AC-3e
- Safety Reliability Level
- B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
- Pole Contact Composition
- 3 NO
- Time Constant
- 25 ms
- Rated Operational Current
- 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Inrush Power in W
- 270 to 365 W 68°F (20°C)
- Rated Operational Voltage
- Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Hold-In Power Consumption in W
- 2.4 to 5.1 W 68°F (20°C)
- Conventional Free Air Thermal Current
- 200 A (at 140°F (60°C)) for power circuit
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Protective Cover
- With
- Contact Compatibility
- M10
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Maximum Operating Rate
- 1200 cyc/h 140°F (60°C)
- Control Circuit Type
- DC standard
- Utilisation Category
- AC-3; AC-1; AC-4; AC-3e
- Climatic Withstand
- IACS E10 exposure to damp heat
- Mechanical Robustness
- Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms)
- Protective Treatment
- THIEC 60068-2-30
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- [Icw] Rated Short-Time Withstand Current
- 250 A 40°C - 10 min for power circuit, 580 A 40°C - 1 min for power circuit, 1200 A 40°C - 10 s for power circuit, 1400 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Horsepower @ Three Phase - 480V AC
- 100 hp
- Full Load Current - Resistive
- 200 A
- Horsepower @ Three Phase - 240V AC
- 50 hp
- Horsepower @ Three Phase - 208V AC
- 40 hp
- Full Load Current - Inductive
- 150 A
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Maximum Voltage Rating
- 1000V AC, 300V DC
- Mounting Style
- Plate, Rail
- Maximum Operating Temperature
- 140 Degrees F
