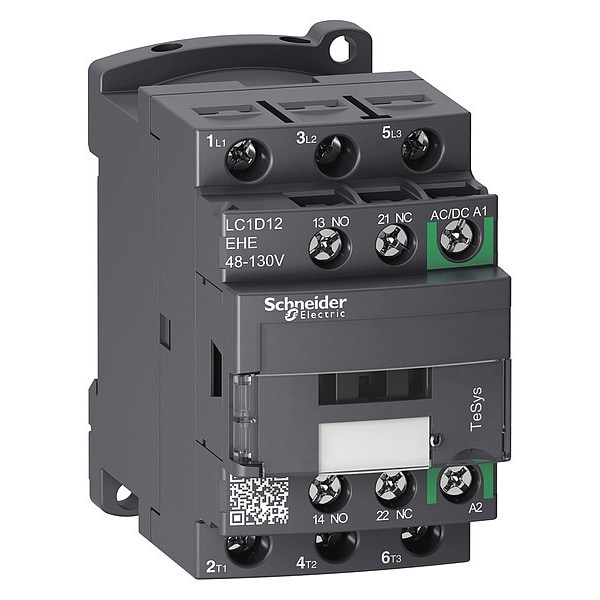

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D12EHE

  • Zoro # G6043751

product price:  $100.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
25 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1D12EHE
Zoro #
G6043751
UPC #
03606480987670
Country of Origin
Korea, Republic of

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
3.03 in
Overall Depth
3.39 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
25 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Enclosure NEMA Rating
No Enclosure
Reversing
No
HP @ 3 Phase - 575V
10 hp
Frame / Series / Class / Code
TeSys
Series
TeSys Deca
Application
Motor Control, Resistive Load
Signalling Circuit Frequency
25 to 400 Hz
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Watts Loss
0.8W
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Operating Speed
3600 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Overvoltage Category
CAT III
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit)
IP Rating
IP20
Switching Current
5 mA (Signalling Circuit)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Impedance
2.5 mOhm
Fire Rating
UL 94 V1
Hold VA
1.3 VA
Rated Insulation Volts
690V
Max. Operating Watts
3 kW (at 220 to 230V AC 50 Hz AC-3), 5.5 kW (at 380 to 400V AC 50 Hz AC-3), 5.5 kW (at 415V AC 50 Hz AC-3), 5.5 kW (at 440V AC 50 Hz AC-3), 7.5 kW (at 500V AC 50 Hz AC-3), 7.5 kW (at 660 to 690V AC 50 Hz AC-3), 3 kW (at 220 to 230V AC 50 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50 Hz AC-3e), 5.5 kW (at 415V AC 50 Hz AC-3e), 5.5 kW (at 440V AC 50 Hz AC-3e), 7.5 kW (at 500V AC 50 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Inrush VA
25 VA
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Impulse Withstand Voltage
6 kV
Mechanical Durability
15 Mcycles
Includes Protective Cover
Yes
Net Weight
0.373 kg
Electrical Durability
2.3 Mcycles (11 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2.3 Mcycles (11 A, AC-3e, Less than 440 V)
Features
Built-In Bi-Directional Peak Limiting
Tightening Torque
1.7 Nm
Environmental Attributes
Mercury Free, Pollution Degree 3
Non-Overlap Time
1.5 ms
Rated Breaking Capacity
250 A @ 440V
Horsepower @ Three Phase - 240V AC
3 hp
Full Load Current - Inductive
12:00 AM
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 600V AC
10 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Full Load Current - Resistive
25 A
Mounting Style
DIN Rail, Plate
Contactor Style
IEC
Minimum Operating Temperature
-40 Degrees F
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 208V AC
3 hp
NEMA Enclosure Rating
No Enclosure
Number of Normally Open Main Contacts
3
Electrical Operating Durability
2,300,000, 800,000
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Phase
Three
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Single Phase - 120V AC
1/2 hp
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
15,000,000
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a three-pole, non-reversing electromagnetic switch rated for operation within specified parameters for controlling power circuits. It is compatible with coil voltages within the specified range of 48–130 V AC/DC and contains auxiliary contacts (1NO/1NC) and main contacts as specified. The device uses screw clamp terminals and comes with a protective cover; it does not include an embedded surge suppressor or enclosure.
