Item

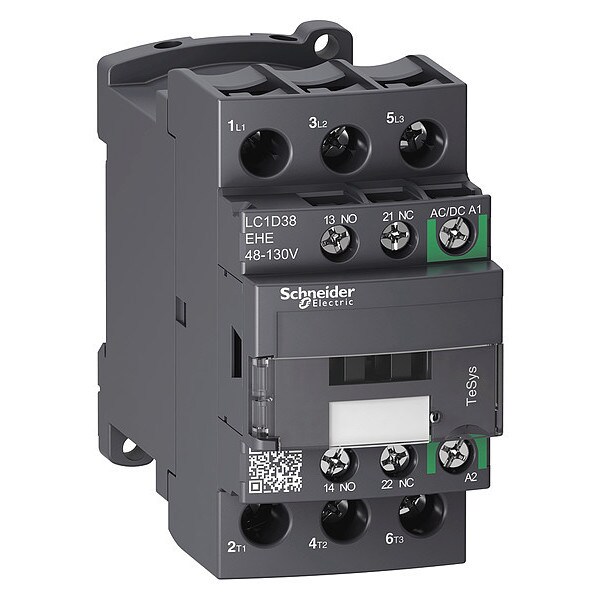

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
25 hp
Enclosure NEMA Rating
No Enclosure
Full Load Current - Resistive
50 A
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 600V AC
25 hp
Horsepower @ Single Phase - 120V AC
2 hp
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 208V AC
10 hp
Mechanical Operating Durability
15,000,000
Horsepower @ Three Phase - 240V AC
10 hp
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 240V AC
5 hp
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
1,800,000, 900,000
Number of Normally Open Main Contacts
3
Resistance Properties
Fire Resistant, Insulation Resistant
Full Load Current - Inductive
38 A
Horsepower @ Three Phase - 480V AC
20 hp
Signalling Circuit Frequency
25 to 400 Hz
Features
Built-In Bi-Directional Peak Limiting
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Operating Speed
3600 cycles per hr
Overvoltage Category
CAT III
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Max. Operating Watts
9 kW (at 220 to 230V AC 50 Hz AC-3), 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 18.5 kW (at 415V AC 50 Hz AC-3), 18.5 kW (at 440V AC 50 Hz AC-3), 18.5 kW (at 500V AC 50 Hz AC-3), 18.5 kW (at 660 to 690V AC 50 Hz AC-3), 9 kW (at 220 to 230V AC 50 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 18.5 kW (at 415V AC 50 Hz AC-3e), 18.5 kW (at 440V AC 50 Hz AC-3e), 18.5 kW (at 500V AC 50 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Application
Motor Control, Resistive Load
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Rated Breaking Capacity
550 A @ 440V
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 60 A (at 40°C for 10 min Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit)
Switching Voltage
17 V (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Environmental Attributes
Mercury Free, Pollution Degree 3
Electrical Durability
1.8 Mcycles (35 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V); 1.8 Mcycles (35 A, AC-3e, Less than 440 V)
Mechanical Durability
15 Mcycles
Includes Protective Cover
Yes
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Rated Insulation Volts
690V
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)
