- MFR #
- LC2D65AEHE
- Zoro #
- G6039472
- UPC #
- 03606480988158
- Country of Origin
- Korea, Republic of
- Item

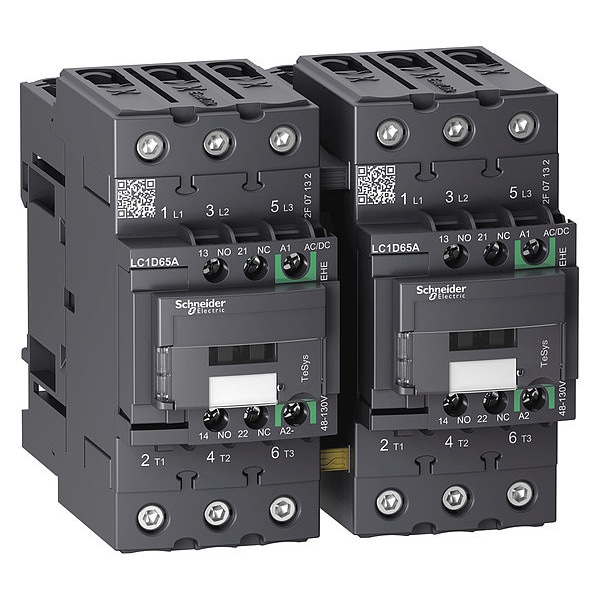

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 48V-130V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 65 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Frame / Series / Class / Code
- TeSys
- Reversing
- Yes
- HP @ 3 Phase - 575V
- 50 hp
- Enclosure NEMA Rating
- No Enclosure
- Series
- TeSys Deca
- IP Rating
- IP20
- Mounting Style
- DIN Rail, Plate
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower @ Single Phase - 120V AC
- 5 hp
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Full Load Current - Resistive
- 80 A
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Frequency
- 50/60 Hz
- Horsepower @ Three Phase - 240V AC
- 20 hp
- Full Load Current - Inductive
- 65 A
- Horsepower @ Three Phase - 208V AC
- 20 hp
- Embedded Surge Suppressor
- No
- Maximum Voltage Rating
- 690V AC
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Number of Normally Open Main Contacts
- 3
- Contactor Style
- IEC
- Mechanical Operating Durability
- 6,000,000
- NEMA Enclosure Rating
- No Enclosure
- Electrical Operating Durability
- 1,800,000, 500,000
- Horsepower @ Three Phase - 600V AC
- 50 hp
- Maximum Operating Temperature
- 140 Degrees F
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Operating Speed
- 3600 cycles per hr
- Signalling Circuit Frequency
- 25 to 400 Hz
- Impedance
- 1.5 mOhm
- Non-Overlap Time
- 1.5 ms
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Electrical Durability
- 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V)
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Hold VA
- 1.4 VA
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Includes Protective Cover
- Yes
- Application
- Motor Control, Resistive Load
- Fire Rating
- UL 94 V1
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Switching Voltage
- 17 V (Signalling Circuit)
- Max. Operating Watts
- 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz)
- Rated Insulation Volts
- 690V
- Watts Loss
- 0.9W
- Overvoltage Category
- CAT III
- Rated Breaking Capacity
- 1000 A @ 440V
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
- Fuse Amps
- 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)
- Inrush VA
- 23 VA
- Impulse Withstand Voltage
- 6 kV
- Mechanical Durability
- 6 Mcycles
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Net Weight
- 2.174 kg
- Operating Time
- 55 to 65 ms (Closing), 20 to 120 ms (Opening)
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)
