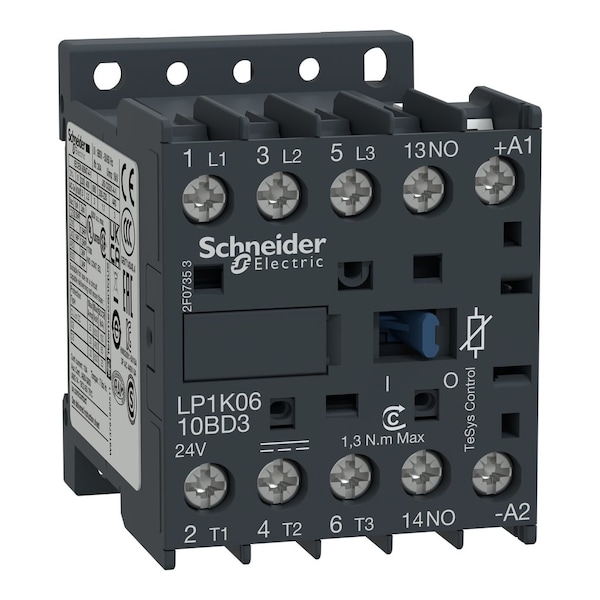

Schneider Electric IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Screw Clamp LP1K0610BD3 - main

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Screw Clamp

  • Mfr # LP1K0610BD3

  • Zoro # G0568815

product price:  $94.55
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LP1K0610BD3
Zoro #
G0568815
UPC #
785901150626
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
57 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP1K
Application
Motor Control
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Tightening Torque
0.8 to 1.3 Nm
Net Weight
0.225 kg
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Rated Making Capacity
110 A
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Overvoltage Category
CAT III
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Impulse Withstand Voltage
8 kV
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Impedance
3 mOhm
Mechanical Durability
10 Mcycles
Switching Voltage
17 V (Signalling Circuit)
Full Load Current - Inductive
6:00 AM
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
Maximum Voltage Rating
690V AC
Mounting Style
Plate, Rail

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a motor control device designed for plate or rail mounting. It operates with a coil voltage of 24V DC and has an operational control circuit voltage limit between 0.8 to 1.15 Uc (at 50°C), and drop-out range from 0.1 to 0.75 Uc (at 50°C). The contactor features one auxiliary contact form, three poles, and is built with a bi-directional peak limiting diode suppressor.

Key Features:

Auxiliary Contact Form: This feature allows the device to have one normally open (NO) auxiliary contact.

  • Coil Voltage: Operates at a coil voltage of 24V DC.
  • Control Circuit Voltage Limits: Operates within the specified control circuit voltage limits.
  • Built-In Bi-Directional Peak Limiting Diode Suppressor: This feature helps in suppressing electrical noise in the system.
  • Mounts On: Suitable for plate or rail mounting.
  • Number of Poles: Features three poles for potential multi-circuit switching.
  • Rated Breaking Capacity: Breaking capacity varies with operating voltage, specifications indicate higher capacity at lower voltages such as 415V,440V,220 to230 V,and380to400 V
  • -Terminal Connection Type:Screw Clamp is the terminal connection type offered
