- Item

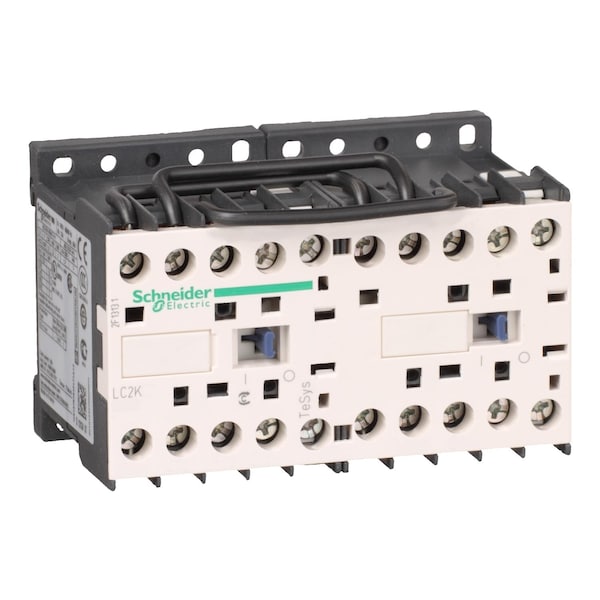

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NO
- Coil Voltage
- 48V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 12 A
- Full Load Amps-Resistive
- 20 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 1
- Standards
- EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016
- Series
- LC2K, TeSys
- Features
- Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- Operating Time
- 10 to 20 ms (Coil Energisation and NO Closing), 10 to 20 ms (Coil De-Energisation and NO Opening)
- Mechanical Durability
- 5 Mcycles
- Environmental Attributes
- Mercury Free, Toxic Heavy Metal Free
- Rated Making Capacity
- 144 A @ 690V (AC Power Circuit), 110 A (AC Signalling Circuit)
- Signalling Circuit Frequency
- Less Than 400 Hz
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Insulation Volts
- 600/690V
- Electrical Durability
- 0.3 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (12 A, AC-3, Less than 440 V); 1.3 Mcycles (12 A, AC-3e, Less than 440 V)
- Control Circuit Voltage Limits
- Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C)
- Inrush VA
- 30 VA
- Tightening Torque
- 0.8 to 1.3 Nm
- Switching Current
- 5 mA (Signalling Circuit)
- Rated Short-Time Withstand Current
115 A (at 50 Degrees C for 1 s Power Circuit), 105 A (at 50 Degrees C for 5 s Power Circuit), 100 A (at 50 Degrees C for 10 s Power Circuit), 75 A (at 50 Degrees C for 30 s Power Circuit), 55 A (at 50 Degrees C for 1 min Power Circuit), 50 A (at 50 Degrees C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50??C for 15 min Power Circuit)
- Hold VA
- 4.5 VA
- Overvoltage Category
- CAT III
- Impulse Withstand Voltage
- 8 kV
- Fire Rating
- UL 94 V1, NF F 16-101, NF F 16-102
- Operating Speed
- 3600 cycles per hr
- IP Rating
- IP20
- Rated Breaking Capacity
- 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V
- Fuse Amps
- 25 A (Power Circuit), 10 A (Signalling Circuit)
- Watts Loss
- 1.3W
- Impedance
- 3 mOhm
- Net Weight
- 0.39 kg
- Shock Resistance
- 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)
- Max. Operating Watts
- 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz)
- Switching Voltage
- 17 V (Signalling Circuit)
- Control Circuit Type
- AC 50/60 Hz
- Ambient Air Temperature For Storage
- -50-80°C
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Mechanical Robustness
shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Ambient Air Temperature For Operation
- -25-50°C
- Pole Contact Composition
- 3 NO
- Interlocking Type
- mechanical
- Device Application
- control
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, signalling circuit 600 V UL 508, power circuit 600 V CSA C22.2 No 14, signalling circuit 600 V CSA C22.2 No 14
- Contactor Application
- resistive load, motor control
- Product Name
- TeSys K
- [Icw] Rated Short-Time Withstand Current
115 A 50°C - 1 s for power circuit, 105 A 50°C - 5 s for power circuit, 100 A 50°C - 10 s for power circuit, 75 A 50°C - 30 s for power circuit, 55 A 50°C - 1 min for power circuit, 50 A 50°C - 3 min for power circuit, 25 A 50°C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit
- Maximum Operating Rate
- 3600 cyc/h
- Non Overlap Distance
- 0.5 mm
- Utilisation Category
- AC-3, AC-3e, AC-4, AC-1
- Heat Dissipation
- 1.3-1.3 W
- Protective Treatment
- TC IEC 60068, TC DIN 50016
- Auxiliary Contacts Type
- instantaneous 1 NO
- Full Load Current - Resistive
- 20 A
- Full Load Current - Inductive
- 12 A
- Inrush Power in VA
- 30-30 VA (at 20°C)
- Mounting Style
- Plate, Rail
- Control Circuit Voltage
- 48 V AC 50/60 Hz
- Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz, signalling circuit <= 690 V AC 50/60 Hz
- Conventional Free Air Thermal Current
- 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
- Rated Operational Current
- 12 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 12 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
- Maximum Voltage Rating
- 690V AC
