- MFR #
- XCSPL783
- Zoro #
- G3726597
- UPC #
- 785901326762
- Country of Origin
- France
- Item

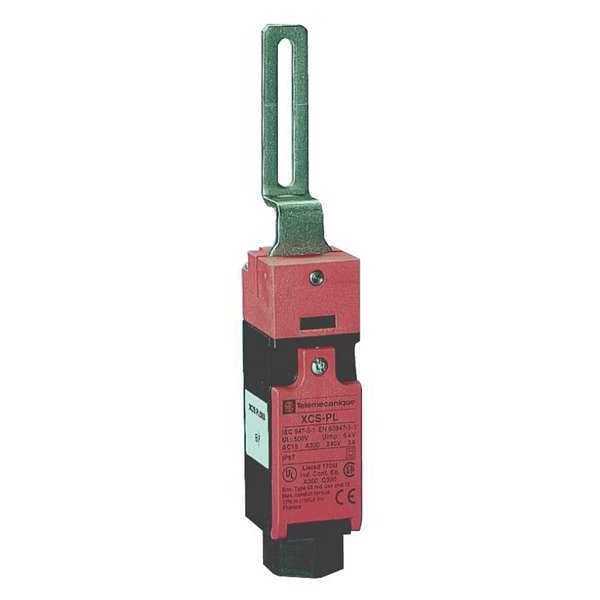

- Safety Interlock Switch
- Style
- Elbowed Lever Operated
- Series
- XCSPL
- AC Contact Rating
- 6 A @ 300 V
- DC Contact Rating
- 0.55 A @ 300 V
- Contact Form
- 1NC/1NC
- Connection Type
- 1/2 in NPT Conduit
- IP Rating
- IP67
- Operating Temp. Range
- -13 Degrees to 158 Degrees F
- Operating Force
- 0.18 ft-lb
- Description/Special Features
- Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight
- Body Material
- Plastic
- Standards
- BG, CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/ISO 12100, UL 508
- NEMA Rating
- 12, 4, 4X
- Material
- plastic
- Electrical Connection
- 1/2 in NPT Conduit
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 50 gn 10-500 Hz)IEC 60068-2-6
- Head Type
- turret head rotary lever
- Mechanical Durability
- 1000000 cycles
- NEMA Enclosure Rating
- 12, 4, 4X
- Mechanical Operating Durability
- 1,000,000
- Operating Temperature - Minimum
- -13 Degrees F
- Operating Torque
- 2.16 in-lb
- Actuating Key Type
- Elbowed
- Circuitry Action
- Slow Action
- Operating Temperature - Maximum
- 158 Degrees F
- Resistance Properties
- Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight
- Contacts Type And Composition
- 1 NC + 1 NC
- Ambient Air Temperature For Operation
- -25-70°C
- Electrical Shock Protection Class
- class II EN/IEC 61140
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 300 VCSA C22.2 No 14 || 500 V 3)EN/IEC 60947-1
- Cable Entry
- 1 entry tapped 1/2" NPT
- Contact Code Designation
- A300, AC-15 (Ue = 120 V, Ie = 6 A)EN/IEC 60947-5-1 || A300, AC-15 (Ue = 240 V, Ie = 3 A)EN/IEC 60947-5-1 || Q300, DC-13 (Ue = 125 V, Ie = 0.55 A)EN/IEC 60947-5-1 || Q300, DC-13 (Ue = 250 V, Ie = 0.27 A)EN/IEC 60947-5-1
- Ambient Air Temperature For Storage
- -40-70°C
- Protective Treatment
- TH || TC
- [Ithe] Conventional Enclosed Thermal Current
- 10A
- Positive Opening Minimum Torque
- 0.25 N.m
- Operator Direction Information
- centred
- Product Certifications
- CSA || UL || BG
- Number Of Poles
- 2
- Type Of Operator
- elbowed flush lever
- Component Name
- XCSPL
- Minimum Torque For Tripping
- 0.1 N.m
- Enclosure Material
- polyamide PA66 fibre glass impregnated
- Positive Opening
- with NC contact
- Clamping Connection Capacity
- 1 x 0.5...2 x 1.5 mm² with or without cable end
- Short-Circuit Protection
- 10 A cartridge fuse gG (gl)
- Tripping Angle
- 5°
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- Insulation
- double insulated
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-5-1
- Maximum Resistance Across Terminals
- 30 mOhm EN/IEC 60947-5-4
- Safety Level
- can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
- Lever Material
- stainless steel
- Contact Operation
- slow-break
- Product Or Component Type
- guard switch
