  7. IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp

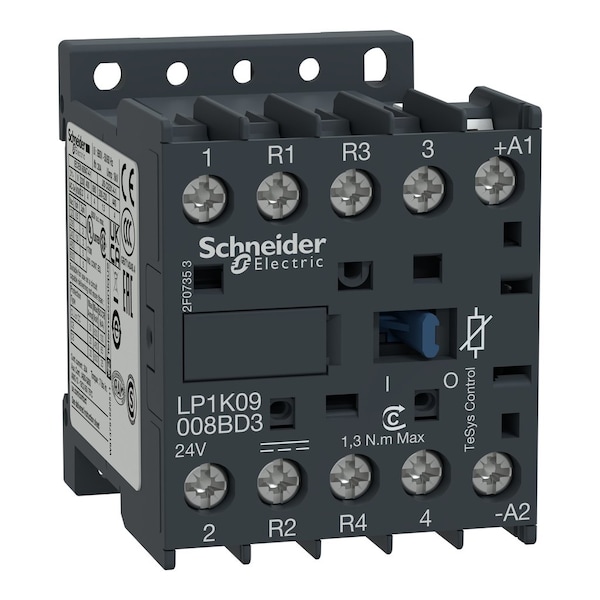

Schneider Electric IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp LP1K09008BD3 - main

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp

  • Mfr # LP1K09008BD3

  • Zoro # G0849549

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP1K09008BD3
Zoro #
G0849549
UPC #
785901173151
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Width
45 mm
Overall Depth
57 mm
Overall Height
58 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP1K
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Application
Resistive Load
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Operating Speed
3600 cycles per hr
Net Weight
0.225 kg
Rated Making Capacity
110 A (AC Power Circuit)
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Fuse Amps
25 A
Mechanical Durability
10 Mcycles
Rated Insulation Volts
600/690V
Overvoltage Category
CAT III
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening), 25 to 35 ms (Coil Energisation and NC Opening), 15 ms (Coil De-Energisation and NC Closing)
Impedance
3 mOhm
Tightening Torque
0.8 to 1.3 Nm
Impulse Withstand Voltage
8 kV
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Full Load Current - Inductive
9:00 AM
Full Load Current - Resistive
20 A
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit)
Mounting Style
Plate, Rail

Description

The item is an IEC Magnetic Contactor (LP1K series) with four poles and screw clamp terminals. It operates from a 24 V DC coil and provides a 2NC/2NO auxiliary contact configuration. Rated for use with resistive loads within specified parameters, it supports mounting on plate or rail and is rated for operation up to 690 V AC within specified conditions. Its approximate exterior dimensions are 45 mm wide, 57 mm deep, and 58 mm high, with a net weight of 0.225 kg.

Coil voltage: 24 V DC

  • Poles: 4
  • Auxiliary contacts: 2NC/2NO
  • Terminal connection: Screw Clamp
  • Mounting: Plate, Rail
  • Rated for operation up to 690 V AC within specified conditions
  • Full Load Amps: Resistive 20 A; Inductive 9 A
  • Fire rating: complies with these fire safety standards as tested and certified
  • Impulse withstand voltage: rated to withstand impulse voltages up to 8 kV under specified testing conditions
  • Series: LP1K
  • Overvoltage category: CAT III
  • Rated insulation voltage: 600/690 V
