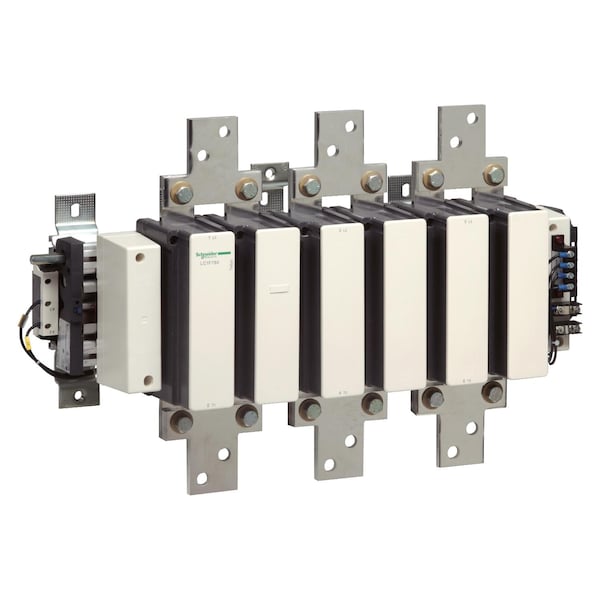

IEC Magnetic Contactor, 3NO, 110V AC, 3 P, Screw Clamp

  • Mfr # LC1F780F7

  • Zoro # G3156380

product price:  $8,048.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
3NO
Coil Voltage
110V AC
Number of Poles
3
Terminal Connection Type
Screw Clamp
Standards
EN 60947-1; JIS C8201-4-1; IEC 60947-4-1; IEC 60947-1; EN 60947-4-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1F780F7
Zoro #
G3156380
UPC #
785901166139
Country of Origin
Czechia

Dimensions

Working Height
9842.52 ft
Overall Width
27.64 in (702 mm)
Overall Depth
10.04 in (255 mm)
Overall Height
17.09 in (434 mm)

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
3NO
Coil Voltage
110V AC
Number of Poles
3
Terminal Connection Type
Screw Clamp
Standards
EN 60947-1; JIS C8201-4-1; IEC 60947-4-1; IEC 60947-1; EN 60947-4-1
Series
LC1F, TeSys
Application
Motor Control, Resistive Load
Motor starter type
Direct on-line contactor
[Uc] control circuit voltage
110 V AC 40...400 Hz
[Icw] rated short-time withstand current
3000 A 104 °F (40 °C) - 3 min; 6250 A 104 °F (40 °C) - 10 s; 5600 A 104 °F (40 °C) - 30 s; 4600 A 104 °F (40 °C) - 1 min; 2200 A 104 °F (40 °C) - 10 min
Tightening torque
Control circuit 10.62 lbf.in (1.2 N.m); Power circuit 513.34 lbf.in (58 N.m)
Rated breaking capacity
6240 A conforming to IEC 60947-4-1
Control Circuit Type
AC 40...400 Hz
Net Weight
39.5 kg
IP Rating
IP20
Rated Breaking Capacity
6240 A
Tightening Torque
1.2 Nm (Control Circuit,) 58 Nm (Power Circuit)
Overvoltage Category
CAT III
Watts Loss
44W
Operating Speed
600 cycles per hr
Impedance
0.1 mOhm
Fuse Amps
800 A (aM Fuse), 1600 A (gG Fuse)
Control Circuit Voltage Limits
Operational: 0.85 to 1.1 Uc (at 55°C 40 to 400 Hz), Drop-Out: 0.2 to 0.4 Uc (at 55°C 40 to 400 Hz)
Max. Operating Watts
450 kW (at 1000V AC 50/60 Hz AC-3), 400 kW (at 380 to 400V AC 50/60 Hz AC-3), 425 kW (at 415V AC 50/60 Hz AC-3), 425 kW (at 440V AC 50/60 Hz AC-3), 450 kW (at 500V AC 50/60 Hz AC-3), 475 kW (at 660 to 690V AC 50/60 Hz AC-3), 220 kW (at 220 to 230V AC 50/60 Hz AC-3), 110 kW (at 400V AC 50/60 Hz AC-4)
Inrush VA
2100 VA
Environmental Attributes
Mercury Free
Mechanical Durability
5 Mcycles
Rated Short-Time Withstand Current
3000 A (40°C for 3 min), 6250 A (at 40°C for 10 s), 5600 A (at 40°C for 30 s), 4600 A (at 40°C for 1 min), 2200 A (at 40°C for 10 min)
Hold VA
50 VA
Rated Insulation Volts
1000/1500V
Operating Time
40 to 80 ms (Closing), 130 to 230 ms (Opening)
Impulse Withstand Voltage
8 kV
Full Load Current - Resistive
1600 A
Full Load Current - Inductive
780 A
Pole Contact Composition
3 NO
Rated Operational Voltage
<= 1000 V AC 50/60 Hz; <= 460 V DC
Rated Operational Current
1600 A (at <104 °F (40 °C)) at <= 440 V AC AC-1; 780 A (at <131 °F (55 °C)) at <= 440 V AC AC-3
Mounting Style
Plate
Maximum Operating Rate
600 cyc/h
Conventional Free Air Thermal Current
1600 A (at 40°C)
Inrush Power in VA
2100 VA, 40...400 Hz 0.9 68 °F (20 °C))
Maximum Voltage Rating
1000V AC, 460V DC
Maximum Operating Temperature
131 Degrees F
Ambient Air Temperature For Operation
-40 to 158 °F (-40 to 70 °C)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, coil-operated switching device with 3 normally open auxiliary contacts (3NO). It uses a 110 V AC coil and is configured for control of motor and resistive loads. This unit is part of the TeSys F range (LC1F series) and is compatible with screw-clamp control terminals and power circuit bars with bolted connections.

Coil voltage: 110 V AC

  • Poles and auxiliary contacts: 3P, 3NO
  • Control/power terminals: Control circuit screw clamp terminals; Power circuit bar, bolted connection
  • Rated operational voltage: rated for operation within the specified voltage ranges
  • Rated insulation voltage: 1000/1500 V
  • Short-time withstand current (Icw): short-time withstand current ratings are provided according to testing standards
  • Full-load current: rated for the specified full-load currents under standard conditions
  • Ambient & storage temperatures: Operation 23 to 131 °F (−5 to 55 °C); Storage −76 to 176 °F (−60 to 80 °C); Permissible ambient −40 to 158 °F (−40 to 70 °C)
  • IP rating: IP20
  • Mechanical durability: 5 Mcycles
  • Weight: 39.5 kg
  • Dimensions: Width 27.64 in (702 mm); Height 17.09 in (434 mm); Depth 10.04 in (255 mm)
  • Motor power ratings: 450 kW at 1000 V AC (AC-3); 400 kW at 380–400 V; 425 kW at 415–440 V; 450 kW at 500 V; 475 kW at 660–690 V; 220 kW at 220–230 V; 110 kW at 400 V (AC-4)
  • Series/range: LC1F (TeSys); Range: TeSys F
  • Utilisation categories: conforms to utilisation categories as defined by relevant standards
  • Impulse withstand voltage: 8 kV
  • Inrush/hold-in power: Inrush 2100 VA; Hold-in 50 VA
  • Certifications: UL; CSA; RINA; ABS; LROS; DNV; BV; UKCA; CB; RMRoS
  • Protective treatment and materials: TH protective treatment; Mercury free
