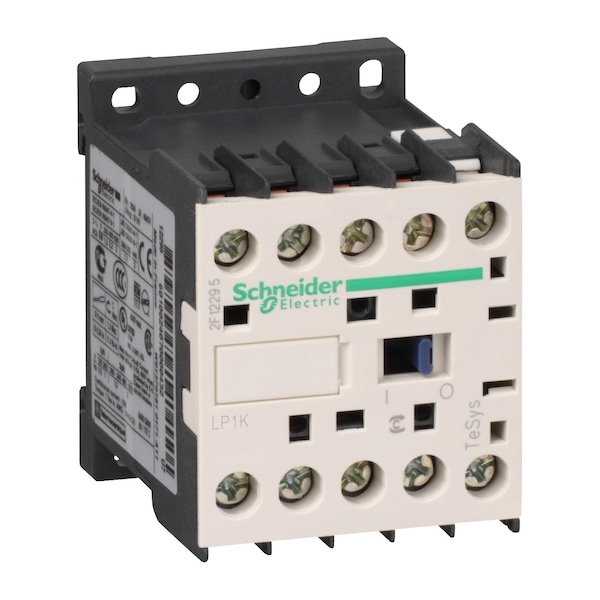

Schneider Electric IEC Magnetic Contactor, 4NO, 12V DC, 4 P, Screw Clamp LP1K12004JD - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 4NO, 12V DC, 4 P, Screw Clamp

  • Mfr # LP1K12004JD

  • Zoro # G0849460

product price:  $116.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
4NO
Coil Voltage
12V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP1K12004JD
Zoro #
G0849460
UPC #
785901786986
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
57 mm
Overall Height
58 mm
Overall Width
45 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
4NO
Coil Voltage
12V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP1K, TeSys
Application
Resistive Load
Rated Making Capacity
144 A (AC Power Circuit)
Rated Insulation Volts
600/690V
Tightening Torque
0.8 to 1.3 Nm
Impulse Withstand Voltage
8 kV
Electrical Durability
0.3 Mcycles 20 A AC-1 <= 690 V
Overvoltage Category
CAT III
Net Weight
0.225 kg
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Operating Speed
3600 cycles per hr
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
Mechanical Durability
10 Mcycles
Rated Breaking Capacity
110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V
Fuse Amps
25 A
Impedance
3 mOhm
Pole Contact Composition
4 NO
Heat Dissipation
1.3-1.3 W
[Ui] Rated Insulation Voltage
power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14
[Icw] Rated Short-Time Withstand Current
115 A 50°C - 1 s for power circuit, 105 A 50°C - 5 s for power circuit, 100 A 50°C - 10 s for power circuit, 75 A 50°C - 30 s for power circuit, 55 A 50°C - 1 min for power circuit, 50 A 50°C - 3 min for power circuit, 25 A 50°C - >= 15 min for power circuit
Ambient Air Temperature For Storage
-50-80°C
Ambient Air Temperature For Operation
-25-50°C
Utilisation Category
AC-1
Operating Altitude
6561.68 ft (2000 m) without derating
Maximum Operating Rate
3600 cyc/h
Control Circuit Type
DC standard
Full Load Current - Resistive
20 A
Full Load Current - Inductive
12:00 AM
Inrush Power in W
3-3 W 20°C)
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit)
Maximum Voltage Rating
690V AC
Hold-In Power Consumption in W
3-3 W 20°C
IP Rating
IP2X
Mounting Style
Plate, Rail
Rated Operational Current
20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
Rated Operational Voltage
power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz

Description

The Schneider Electric IEC Magnetic Contactor is a four-pole, 4NO contactor with a 12 V DC coil and screw clamp terminals. It belongs to the TeSys LP1K family and is rated for operation within the specified voltage ranges. The device is compatible with rail or plate mounting methods and measures 58 mm high, 45 mm wide, and 57 mm deep, with a net weight of 0.225 kg. It includes four normally open auxiliary contacts (4NO) and is intended for use in AC-1 duty.

Key features

  • Coil voltage: 12 V DC
  • Poles/contacts: 4P, 4 NO (AC-1 utilization)
  • Auxiliary contacts: 4 NO
  • Terminals: screw clamp
  • Power-circuit ratings: rated for operation within the specified voltage ranges
  • Full-load currents: rated for operation within the specified current ranges under resistive and inductive loads
  • Rated making capacity: rated according to applicable standards and specifications
  • Icw (short-time withstand): conforms to standard testing conditions, not a guarantee of performance under all circumstances
  • Operating time: typical operating times based on design specifications but not guaranteed under all conditions
  • Impulse withstand: tested according to relevant standards, but does not imply immunity from all transient events
  • Protection: IP2X
  • Ambient operation/storage: -25 to 50°C / -50 to 80°C
  • Mechanical durability: 10 Mcycles
  • Electrical durability: 0.3 Mcycles at 20 A AC-1 <= 690 V
  • Range/Series: LP1K / TeSys
  • Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
  • Fuse rating: 25 A (power circuit)
  • Dimensions and mounting: 58 mm H x 45 mm W x 57 mm D; suitable for rail or plate mounting
  • Weight: 0.225 kg
