  7. IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Screw Clamp

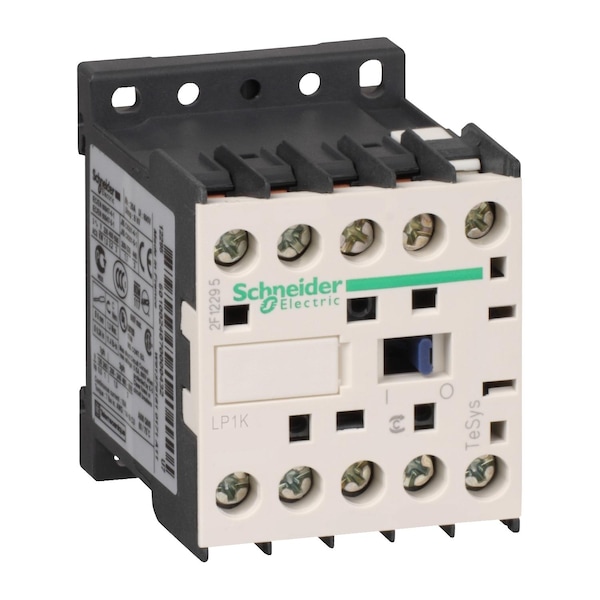

Schneider Electric IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Screw Clamp LP1K12004BD - main

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Screw Clamp

  • Mfr # LP1K12004BD

  • Zoro # G0849451

product price:  $111.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
4NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP1K12004BD
Zoro #
G0849451
UPC #
785901790624
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
57 mm
Overall Height
58 mm
Overall Width
45 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
4NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP1K, TeSys
Application
Resistive Load
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Mechanical Durability
10 Mcycles
Impulse Withstand Voltage
8 kV
Overvoltage Category
CAT III
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Rated Making Capacity
144 A (AC Power Circuit)
Net Weight
0.225 kg
Electrical Durability
0.3 Mcycles 20 A AC-1 <= 690 V
Fuse Amps
25 A
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
Tightening Torque
0.8 to 1.3 Nm
Impedance
3 mOhm
Rated Breaking Capacity
110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
[Ui] Rated Insulation Voltage
power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14
Control Circuit Type
DC standard
Utilisation Category
AC-1
[Icw] Rated Short-Time Withstand Current
115 A 50°C - 1 s for power circuit, 105 A 50°C - 5 s for power circuit, 100 A 50°C - 10 s for power circuit, 75 A 50°C - 30 s for power circuit, 55 A 50°C - 1 min for power circuit, 50 A 50°C - 3 min for power circuit, 25 A 50°C - >= 15 min for power circuit
Ambient Air Temperature For Storage
-50-80°C
Pole Contact Composition
4 NO
Ambient Air Temperature For Operation
-25-50°C
Heat Dissipation
1.3-1.3 W
Operating Altitude
6561.68 ft (2000 m) without derating
Maximum Operating Rate
3600 cyc/h
Full Load Current - Inductive
12:00 AM
Full Load Current - Resistive
20 A
IP Rating
IP2X
Inrush Power in W
3-3 W 20°C)
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit)
Mounting Style
Plate, Rail
Rated Operational Current
20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
Rated Operational Voltage
power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
Maximum Voltage Rating
690V AC
Hold-In Power Consumption in W
3-3 W 20°C

Description

The Schneider Electric IEC Magnetic Contactor (4NO, 24V DC, 4P, Screw Clamp) is an IEC-style, electrically operated switch used to control power circuits in resistive-load applications. It features a 24 V DC coil, four poles, and four normally-open auxiliary contacts, with screw clamp terminals. The unit is suitable for plate or rail mounting and measures 45 mm wide by 58 mm high by 57 mm deep, weighing 0.225 kg. It operates within ambient temperature ranges of -25 to 50°C and can be stored within temperature ranges of -50 to 80°C. Rated for operation at voltages up to 690 V AC; rated operational current: 20 A (≤ 690 V AC, AC-1); making capacity: 144 A at 690 V.

Coil voltage: 24 V DC

  • Poles/contacts: 4P; Pole contact composition 4 NO; Auxiliary contacts: 4 NO
  • Terminals: Screw clamp
  • Mounting: Plate, Rail
  • Application: Resistive Load
  • Rated voltage / insulation: 690 V AC; Rated insulation 600/690 V
  • Currents: Ie rated operational current 20 A (≤ 690 V AC, AC-1); full-load resistive 20 A; full-load inductive 12 A
  • Making capacity: 144 A (AC Power Circuit)
  • Durability: Mechanical 10 Mcycles; Electrical 0.3 Mcycles at 20 A AC-1 ≤ 690 V
  • Operating conditions: Ambient operation -25 to 50°C; storage -50 to 80°C; IP2X; operating altitude up to 2000 m
  • Operating time: 30-40 ms (coil energisation and NO closing); 10 ms (coil de-energisation and NO opening)
  • Standards: EN/IEC 60947-4-1; UL 60947-4-1; CSA; CE; UKCA; etc.
  • Series/Range: LP1K, TeSys
  • Fuse: 25 A fuse; Associated fuse rating: 25 A gG at ≤ 440 V (power circuit); 25 A aM (power circuit)
