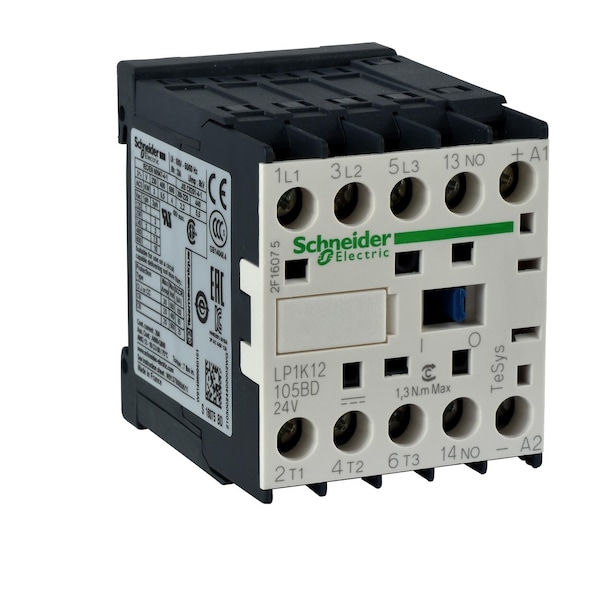

Schneider Electric IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Solder Pin LP1K090045BD - main

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Solder Pin

  • Mfr # LP1K090045BD

  • Zoro # G0849515

product price:  $121.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
4NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Solder Pin
Number of Auxillary Contacts
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LP1K090045BD
Zoro #
G0849515
UPC #
785901908661
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Depth
57 mm
Overall Width
45 mm
Overall Height
58 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
4NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Solder Pin
Number of Auxillary Contacts
0
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Application
Resistive Load
Fuse Amps
25 A
Net Weight
0.225 kg
Electrical Durability
0.16 Mcycles 20 A AC-1 <= 690 V
Impedance
3 mOhm
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Rated Insulation Volts
600/690V
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
Impulse Withstand Voltage
8 kV
Overvoltage Category
CAT III
Rated Making Capacity
110 A (AC Power Circuit)
Operating Speed
3600 cycles per hr
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Mechanical Durability
10 Mcycles
Ambient Air Temperature For Operation
-25-50°C
Heat Dissipation
1.3-1.3 W
[Ui] Rated Insulation Voltage
power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14
Pole Contact Composition
4 NO
Ambient Air Temperature For Storage
-50-80°C
Operating Altitude
6561.68 ft (2000 m) without derating
Control Circuit Type
DC standard
[Icw] Rated Short-Time Withstand Current
90 A 50°C - 1 s for power circuit, 85 A 50°C - 5 s for power circuit, 80 A 50°C - 10 s for power circuit, 60 A 50°C - 30 s for power circuit, 45 A 50°C - 1 min for power circuit, 40 A 50°C - 3 min for power circuit, 20 A 50°C - >= 15 min for power circuit
Maximum Operating Rate
3600 cyc/h
Utilisation Category
AC-1
Full Load Current - Resistive
20 A
Full Load Current - Inductive
9:00 AM
Maximum Voltage Rating
690V AC
Series
TeSys
Rated Operational Voltage
power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit)
Hold-In Power Consumption in W
3-3 W 20°C
Rated Operational Current
20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
Inrush Power in W
3-3 W 20°C)
Mounting Style
Printed Circuit Boards
IP Rating
IP2X

Description

The Schneider Electric IEC Magnetic Contactor is a 4-pole, 4 normally open (4 NO) device with a 24 V DC coil and solder-pin terminals. It is intended for switching resistive loads within specified ratings and is part of the TeSys range for PCB mounting. It operates within the specified temperature ranges.

Coil voltage: 24 V DC

  • Poles/contacts: 4P, 4 NO
  • Terminal connections: Solder pins
  • Application: Resistive Load
  • Rated voltage / insulation: 690 V AC; 600/690 V insulation
  • Rated making capacity: 110 A (AC Power Circuit)
  • Rated for continuous operation at these current levels under specified conditions
  • IP rating: IP2X
  • Mounting: Printed Circuit Boards
  • Dimensions: Width 45 mm, Height 58 mm, Depth 57 mm
  • Weight: 0.225 kg
  • Fuse rating: 25 A (gG at ≤440 V for power circuit; 25 A aM for power circuit) -> fuse ratings are provided according to applicable standards and should be used as recommended
  • Standards: EN/IEC 60947-4-1, UL 60947-4-1, CSA, CE, etc. -> conforms to applicable safety and performance standards
  • Overvoltage category: CAT III
  • Operating time: 30-40 ms (coil energisation; NO closing), 10 ms (coil de-energisation; NO opening)
  • Range: TeSys
