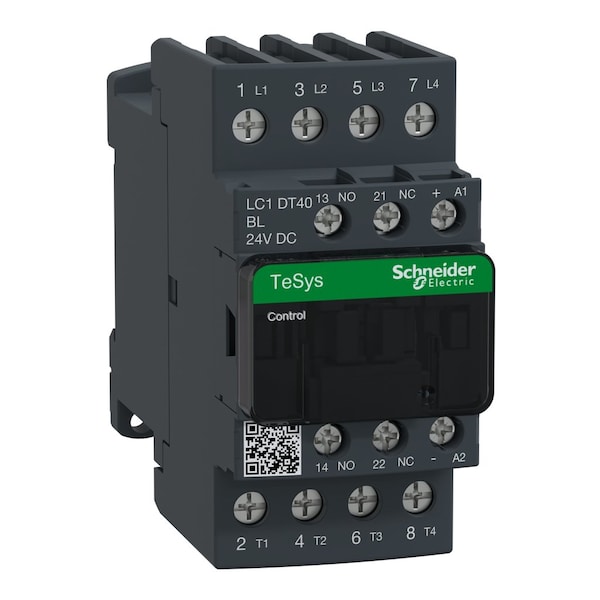

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp LC1DT40BL - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1DT40BL

  • Zoro # G410070607

product price:  $312.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1DT40BL
Zoro #
G410070607
UPC #
3389110248357
Country of Origin
Indonesia

Dimensions

Overall Width
1.77 in
Overall Height
3.58 in
Overall Depth
4.21 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Electrical Operating Durability
1,400,000 (AC-1)
Includes Auxiliary Contacts
Yes
Full Load Current - Resistive
200 A
Frequency
50 Hz
Contactor Style
IEC
Resistance Properties
Fire Resistant, Insulation Resistant
Embedded Surge Suppressor
No
Mechanical Operating Durability
30,000,000
Full Load Current - Inductive
40 A
Maximum Voltage Rating
690V AC
Mounting Style
DIN Rail, Plate
Phase
Single

Description

Schneider Electric’s IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switching device designed to control power circuits in line with IEC standards. It features a 24V DC coil and two auxiliary contacts (1NC/1NO) with screw clamp terminals, and is part of the TeSys Deca series. The unit is a single-phase, 50 Hz device rated for operation within the specified voltage range of up to 690V AC with IP20 protection, and it can be mounted on DIN rail or plate.

Poles and auxiliary contacts: 4 poles; 2 auxiliary contacts (1NC/1NO)

  • Coil voltage: 24V DC
  • Reversing capability: Non-Reversing
  • Terminal type: Screw Clamp
  • Maximum voltage rating: 690V AC
  • Phase and frequency: Single, 50 Hz
  • Series: TeSys Deca
  • Mounting: DIN Rail, Plate
  • IP rating: IP20
  • Mechanical durability: 30,000,000 cycles
  • Electrical durability (AC-1): 1,400,000 cycles
  • Full-load currents: Inductive 150 A; Full-load current - Inductive 40 A; Full-load current - Resistive 200 A
  • Resistance properties: Fire Resistant, Insulation Resistant
  • Embedded surge suppressor: No
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Dimensions (D x H x W): 4.21 in × 3.58 in × 1.77 in
  • Includes auxiliary contacts: Yes

    • Restrictions
