- Item

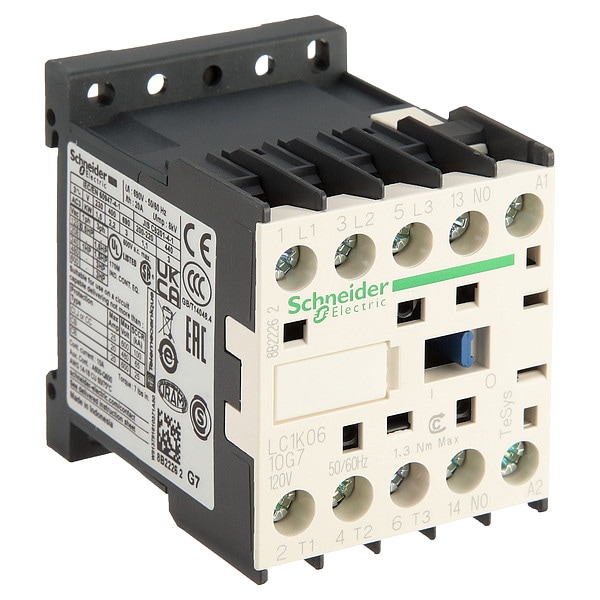

- IEC Miniature Magnetic Contactor
- Auxiliary Contact Form
- 1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 6 A
- Full Load Amps-Resistive
- 15 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 1
- Standards
- BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
- HP @ 3 Phase - 575V
- 3 hp
- HP @ 1 Phase - 230V
- 1-1/2
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- Series
- TeSys K
- Mechanical Durability
- 10 Mcycles
- Switching Voltage
- 17 V (Signalling Circuit)
- Electrical Durability
- 1.3 Mcycles (6 A, AC-3, Less than 440 V); 1.3 Mcycles (6 A, AC-3e, Less than 440 V)
- Hold VA
- 4.5 VA
- Rated Making Capacity
- 110 A
- Net Weight
- 0.18 kg
- Fire Rating
- UL 94 V1, NF F 16-101, NF F 16-102
- Environmental Attributes
- Mercury Free, Toxic Heavy Metal Free
- Rated Insulation Volts
- 600/690V
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Application
- Motor Control
- Control Circuit Voltage Limits
- Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C)
- Rated Short-Time Withstand Current
90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 20 A (at 50°C for 15 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit)
- Impulse Withstand Voltage
- 8 kV
- Max. Operating Watts
1.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 2.2 kW (at 380 to 415V AC 50/60 Hz AC-3), 3 kW (at 440V AC 50/60 Hz AC-3), 3 kW (at 480V AC 50/60 Hz AC-3), 3 kW (at 500 to 600V AC 50/60 Hz AC-3), 3 kW (at 660 to 690V AC 50/60 Hz AC-3), 1.5 kW (at 400V AC 50/60 Hz AC-4), 1.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 2.2 kW(at 380 to 415V AC 50/60 Hz AC-3e), 3 kW (at 440V AC 50/60 Hz AC-3e), 3 kW (at 480V AC 50/60 Hz AC-3e), 3 kW (at 500 to 600V AC 50/60 Hz AC-3e), 3 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- IP Rating
- IP22
- Watts Loss
- 1.3W
- Impedance
- 3 mOhm
- Inrush VA
- 30 VA
- Tightening Torque
- 0.8 to 1.3 Nm
- Signalling Circuit Frequency
- Less Than 400 Hz
- Shock Resistance
- 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)
- Overvoltage Category
- CAT III
- Fuse Amps
- 25 A (Power Circuit), 10 A (Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Operating Time
- 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing)
- Rated Breaking Capacity
- 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
- Operating Speed
- 3600 cycles per hr
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Horsepower @ Three Phase - 600V AC
- 3 hp
- Horsepower @ Three Phase - 480V AC
- 3 hp
- Contactor Style
- IEC
- Maximum Voltage Rating
- 690V AC
- Horsepower @ Single Phase - 240V AC
- 1 1/2 hp
- Electrical Operating Durability
- 1,300,000
- Resistance Properties
- Insulation Resistant
- NEMA Enclosure Rating
- No Enclosure
- Full Load Current - Inductive
- 8.3 A
- Frequency
- 50/60 Hz
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Three Phase - 208V AC
- 1 1/2 hp
- Number of Normally Open Main Contacts
- 3
- Embedded Surge Suppressor
- No
- Horsepower @ Three Phase - 240V AC
- 1 1/2 hp
- Full Load Current - Resistive
- 15 A
- Mechanical Operating Durability
- 10,000,000
- Horsepower @ Single Phase - 120V AC
- 1/2 hp
- Mounting Style
- DIN Rail, Plate
- Conventional Free Air Thermal Current
- 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
