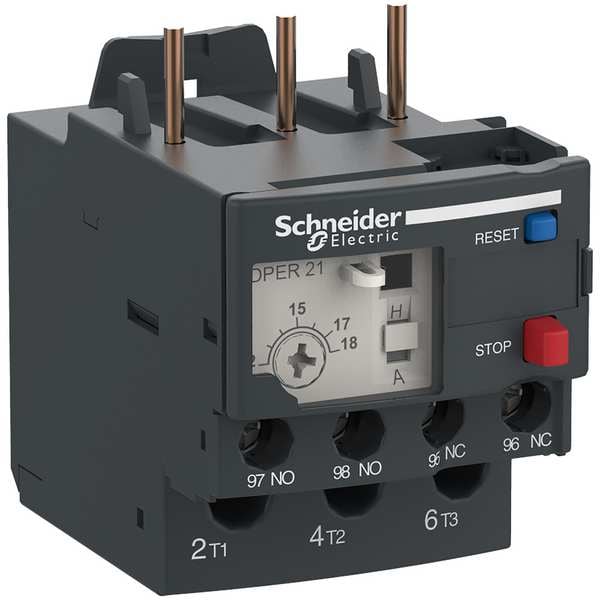

IEC Overload Relay, 1NC/1NO, 12 A Min current, 18 A Max current, 690V AC

IEC Overload Relay, 1NC/1NO, 12 A Min current, 18 A Max current, 690V AC

Mfr # DPER21
Zoro # G803481119

$28.99

Key Features

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

12:00 AM

Maximum Overload Relay Current Setting

18 A

Trip Class

Overload Protection Type

Thermal

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

DPER21

Zoro #

G803481119

UPC #

Country of Origin

France

Dimensions

Height

66 mm

Width

45 mm

Depth

70 mm

Body Height - Relay

2.6 in

Overall Height - Relay

2.6 in

Overall Height

2.6 in

Body Height

2.6 in

Details

Item

IEC Overload Relay

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

12:00 AM

Maximum Overload Relay Current Setting

18 A

Trip Class

Overload Protection Type

Thermal

Maximum Voltage Rating

690V AC

Standards

cUL, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Frame / Series / Class / Code

Class 10, Easy TeSys DPER

Separate Mounting

Yes, Additional Items Needed

Use With - Contactors and Starters

Contactor DPE09-38

Kit Required for Retrofit Mtg.

LAD9R1

Number of Poles

Sensing Method

Thermal

Features

400 Hz Power Circuit IEC 60947-4-1, 5 A Signalling Circuit, 690 V AC

Trip Class - Overload

Shock Resistance

15 gn 11 ms IEC 60068-2-7

Product Certifications

cUL

Surge Withstand

6 kV IEC 60801-5

Product Compatibility

contactor DPE09-38

Range

Easy TeSys

Product Name

Easy TeSys DPER

Network Frequency

0 to 400 Hz

Thermal Protection Adjustment Range

12-18 A

Dielectric Strength

1.89 kV 50 Hz IEC 60947-1

Permissible Current

1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit

Relay Application

overload protection

Product Or Component Type

thermal overload relay

Control Type

Red push-button stop || Blue push-button reset

Ambient Air Temperature For Operation

-20-60°C without derating IEC 60947-4-1

Vibration Resistance

6 gn on plate IEC 60068-2-6

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals

Ambient Air Temperature For Storage

-60-70°C

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Device Short Name

DPER

Network Type

DC || AC

Connections - Terminals

control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end

Thermal Overload Class

class 10 IEC 60947-4-1

Protection Type

BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit

Protective Treatment

TH IEC 60068

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

IP Rating

IP20

Terminal Connection Type

Screw Clamp Terminals

Relay Style

IEC

Mounting Style

Direct To Contactor

Minimum Operating Temperature

-4 Degrees F

Reset Type

Auto, Manual

Compatible with Series

Easy TeSys

Maximum Operating Temperature

140 Degrees F

Phase

Three

Conventional Free Air Thermal Current

5 A signalling circuit

Rated Operational Voltage

690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Rated Insulation Voltage

power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1

Description

IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 18 A, Minimum Overload Relay Current Setting 12 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series Easy TeSys, Relay Style IEC, Overload Protection Type Thermal, Phase Three
