  11. IEC Overload Relay, 1NC/1NO, 7 A Min current, 10 A Max current, 690V AC

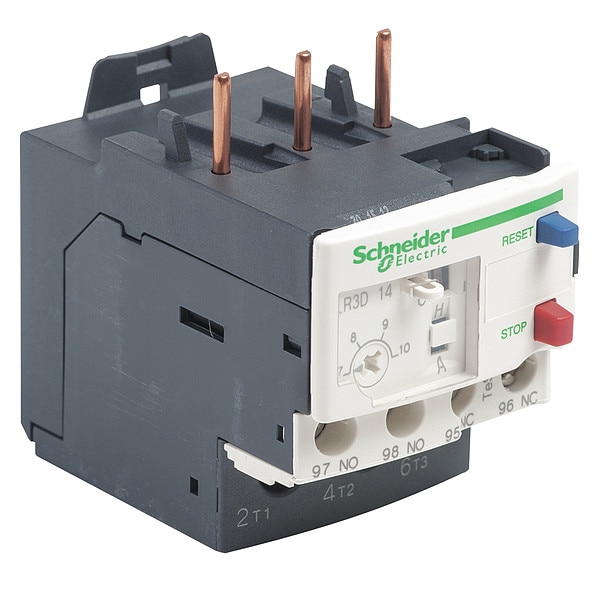

Schneider Electric IEC Overload Relay, 1NC/1NO, 7 A Min current, 10 A Max current, 690V AC LR3D14 - main

IEC Overload Relay, 1NC/1NO, 7 A Min current, 10 A Max current, 690V AC

  • Mfr # LR3D14

  • Zoro # G0569871

product price: $81.59
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
7:00 AM
Maximum Overload Relay Current Setting
10:00 AM
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3D14
Zoro #
G0569871
UPC #
785901206880
Country of Origin
France

Dimensions

Depth
70 mm
Body Height - Relay
2.56 in
Height
66 mm
Width
45 mm
Overall Height - Relay
2.56 in
Body Height
2.6 in
Overall Height
2.6 in

Details

Item
IEC Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
7:00 AM
Maximum Overload Relay Current Setting
10:00 AM
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Separate Mounting
No
Frame / Series / Class / Code
Class 10
Number of Poles
3
Use With - Contactors and Starters
Mfr. Series LUA1C Contactors
Sensing Method
Thermal
Kit Required for Retrofit Mtg.
No
Trip Class - Overload
10A
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Thermal Protection Adjustment Range
7-10 A
Control Type
Red push-button stop || Blue push-button reset
Network Frequency
0 to 400 Hz
Range
TeSys || TeSys Deca
Relay Application
motor protection
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Thermal Overload Class
class 10A IEC 60947-4-1
Device Short Name
LR3D
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Climatic Withstand
IACS E10
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Flame Retardance
V1 conforming to UL 94
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Product Name
TeSys LRD || TeSys Deca
Permissible Current
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Product Or Component Type
non differential thermal overload relay
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Ambient Air Temperature For Storage
-60-70°C
Product Compatibility
LC1D18 || LC1D09 || LC1D12 || LC1D38 || LC1D25 || LC1D32
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Network Type
DC || AC
Relay Style
IEC
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Compatible with Series
TeSys Deca
Reset Type
Auto, Manual
Mounting Style
Direct To Contactor
Terminal Connection Type
Screw Clamp Terminals
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Rated Insulation Voltage
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Conventional Free Air Thermal Current
5 A signalling circuit
Trip Clss
10A

Description

IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 10 A, Minimum Overload Relay Current Setting 7 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
