  15. Illuminated Push Button, 16 mm, 1NO/1NC, Yellow

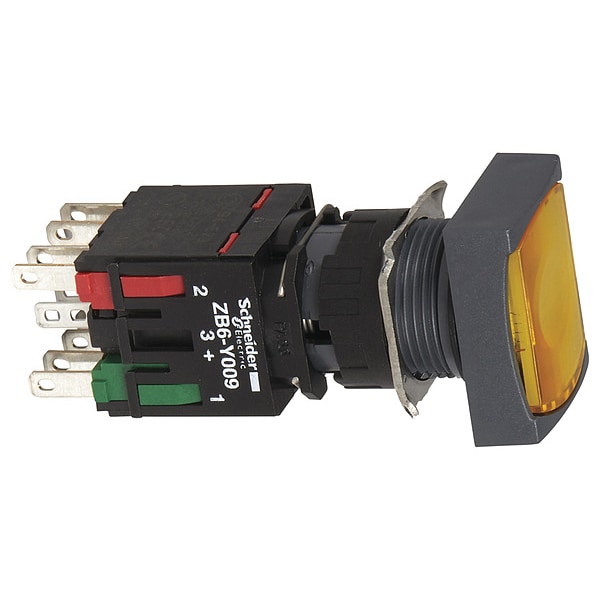

Schneider Electric Illuminated Push Button, 16 mm, 1NO/1NC, Yellow XB6DW5B5B - main

Illuminated Push Button, 16 mm, 1NO/1NC, Yellow

  • Mfr # XB6DW5B5B

  • Zoro # G3464125

product price: $46.99
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
Head Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6DW5B5B
Zoro #
G3464125
UPC #
785901358619
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Cad Overall Height
18 mm
Mounting Diameter
16 mm
Cad Overall Depth
57 mm
Cad Overall Width
24 mm
Overall Depth
2.24 in
Overall Height
0.71 in
Manufacturer Warranty Length
18 mo
Overall Width
0.94 in

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Yellow
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL Listed, WEEE
NEMA Rating
13, 4, 4X
Voltage
12 to 24V AC/DC
Bezel
Plastic
NEMA Contact Rating Designation
B300/R300
Lamp Module Type
Full Voltage
Legend Markings
No Legend
Legend/Background Color
No Legend
Lamp Module Voltage
12 to 24V AC/DC
Type of Operator
Rectangular Flush Button
Lamp Voltage
12 to 24V AC/DC
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC
Lamp Type
LED
Number of Operators
1
Contact Type
1NO/1NC
IP Rating
IP65
Color
Yellow
Basic Material
Plastic
Contact Form
1NO/1NC
Bezel Material
Plastic
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Series
XB6
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Product Type
Push Button Operators
Operating Position
any position
Current Consumption
15 mA
[Us] Rated Supply Voltage
12 to 24 V AC/DC
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Electromagnetic Emission
class B IEC 55011
Light Source
LED
Contact Operation
slow-break
Electrical Reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Ambient Air Temperature For Operation
-25-70°C
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Product Or Component Type
complete illuminated push-button
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Electrical Shock Protection Class
class II IEC 61140
Device Short Name
XB6
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Positive Opening
with EN/IEC 60947-5-1 appendix K
Protective Treatment
TC
Signalling Type
steady
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ip Degree Of Protection
IP65 IEC 60529
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Operating Travel
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Short-Circuit Protection
6 A cartridge fuse gG
Operating Force
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Supply Voltage Limits
6-30 V AC/DC
Contacts Material
silver alloy (Ag/Ni)
Surge Withstand
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Shape Of Signaling Unit Head
rectangular
Operator Profile
yellow flush, unmarked
Bulb Base
integral LED
Contacts Type And Composition
1 NO + 1 NC
Product Certifications
UL || CSA || CCC || GOST
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
13, 4, 4X
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Operator Material
Plastic
Operator Voltage Rating - Maximum
250 V AC/DC

Description

Illuminated Push Button, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Yellow, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Contact Rating Designation B300/R300, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend
