  15. Illuminated Push Button, 30 mm, SPDT, Green

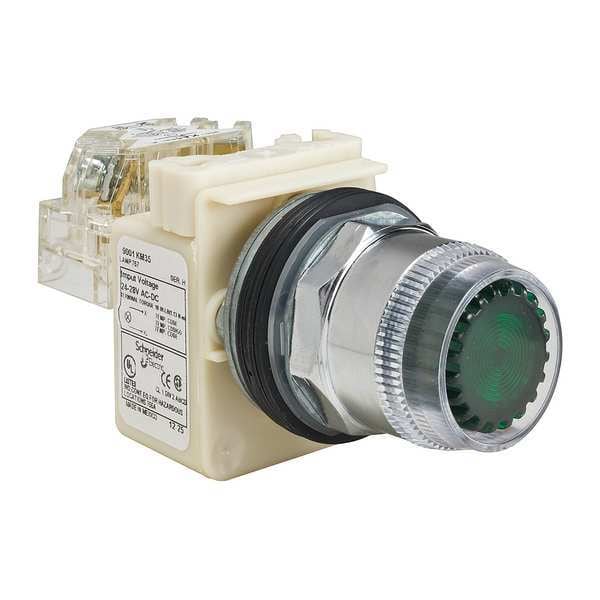

Schneider Electric Illuminated Push Button, 30 mm, SPDT, Green 9001K1L35GH13 - main

Illuminated Push Button, 30 mm, SPDT, Green

  • Mfr # 9001K1L35GH13

  • Zoro # G6373446

product price: $192.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K1L35GH13
Zoro #
G6373446
UPC #
785901027294
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Voltage
24 to 28V AC/DC
Contact Type
1NO/1NC
Lamp Voltage
24V AC/DC
Color
Green
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Bezel
Chrome Plated Metal
Basic Material
Metal
Contact Rating
10A @ 600V AC
Lamp Module Voltage
24V AC/DC
Replacement Lamp
Mfr. No. 1819
Lamp Type
Incandescent
Lamp Module Type
Full Voltage
Contact Form
SPDT
IP Rating
IP66
NEMA Contact Rating Designation
A600/Q600
Number of Operators
1
Type of Operator
Round Guarded Button
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
9001K
Bezel Material
Metal
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Light Block Supply
full voltage, direct
Cap/Operator Or Lens Colour
green
Operator Additional Information
plastic guard
Device Short Name
K
Operating Position
any position
Product Certifications
UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || NEMA || CE
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
[Us] Rated Supply Voltage
24 to 28 V, 24 to 28 V AC/DC
Connections - Terminals
screw clamp terminals
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Contacts Type And Composition
1 C/O
Device Presentation
complete product
Light Source
incandescent, incandescent bulb
Contact Operation
standard
Operator Profile
green flush, flush
Product Or Component Type
illuminated push-button
Bulb Base
BA 9s
Operating Temperature - Maximum
140 Degrees F
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Plastic
Operator Voltage Rating - Maximum
600 V AC
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Number of Indicator Lights
0
Operating Temperature - Minimum
-22 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Voltage - Maximum
28 V AC/DC

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Guarded Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Chrome Plated Metal, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp
