  15. Illuminated Push Button Operator, 16 mm, Green

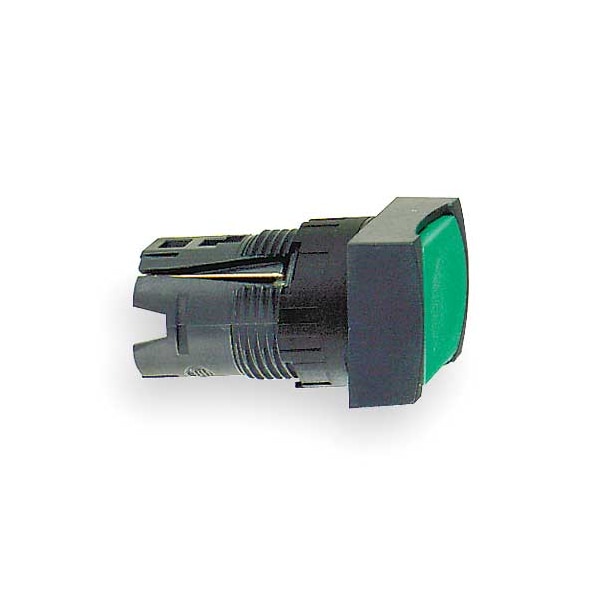

Schneider Electric Illuminated Push Button Operator, 16 mm, Green ZB6CF3 - main

Illuminated Push Button Operator, 16 mm, Green

  • Mfr # ZB6CF3

  • Zoro # G3371015

product price: $17.99
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6CF3
Zoro #
G3371015
UPC #
785901361435
Country of Origin
Spain

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Overall Depth
1.3 in
Overall Height
0.71 in
Overall Width
0.71 in
Manufacturer Warranty Length
18 mo
Cad Overall Depth
33 mm
Cad Overall Height
18 mm
Cad Overall Width
18 mm
Mounting Diameter
16 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Standards
CCC, CSA C22.2 No.14, CSA C22.2 No.94, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C852, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL Listed, UL 508
Basic Material
Plastic
NEMA Rating
13, 4, 4X
IP Rating
IP65
Color
Green
Lamp Voltage
Dependent on Module Used
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
Type of Operator
Square Flush Button
Series
XB6
Features
Latching
Number of Operators
1
Operating Temperature - Minimum
-13 Degrees F
Operator Material
Plastic
Lamp Module Type
No Lamp Module Included
Bezel Material
Plastic
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
1
Product Type
Push Button Operators
Resistance Properties
Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
1, 12
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
square
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Or Component Type
head for illuminated push-button
Device Short Name
ZB6
Bezel
Plastic
Replacement Lamp
Mfr. No. ZB6EB1B through ZB6EH0B
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile
green flush, unmarked
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class II IEC 61140
Mechanical Durability
300000 cycles
Product Compatibility
integral LED
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Ip Degree Of Protection
IP65 IEC 60529
Protective Treatment
TC
Product Certifications
UL || CCC || CSA || GOST

Description

Flush Push Button, 16 mm, Maintained, Type of Operator Square Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 13, 4, 4X, IP Rating IP65, Legend Not Applicable, Standards CCC, CSA C22.2 No.14, CSA C22.2 No.94, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C852, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, UL Listed, UL 508, Features Latching
