  15. Illuminated Push Button Operator, 22 mm, Blue

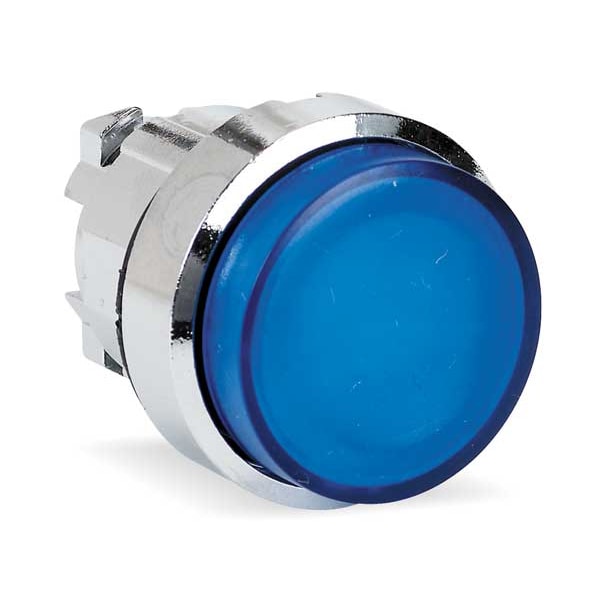

Schneider Electric Illuminated Push Button Operator, 22 mm, Blue ZB4BH63 - main

Illuminated Push Button Operator, 22 mm, Blue

  • Mfr # ZB4BH63

  • Zoro # G0343052

product price: $19.99
/ea

Key Features

Push Button Style
Extended
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BH63
Zoro #
G0343052
UPC #
785901382140
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Overall Height
1.14 in
Overall Depth
1.3 in
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
33 mm
Cad Overall Width
29 mm

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Type
No Lamp Module Included
IP Rating
IP66
Type of Operator
Extended Button
Basic Material
Metal
Lamp Module Voltage
Module Not Included
Color
Blue
Lamp Voltage
Dependent on Module Used
NEMA Rating
13, 4X
Number of Operators
1
Features
Prevents Growth of Bacteria, Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness, Clear Boot
Series
XB4
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Bezel Material
Metal
Product Type
Push Button Operators
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated
Operator Material
Metal
Lamp Module Type
No Lamp Module Included
Number of Indicator Lights
1
Product Compatibility
universal LED
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TH
Ik Degree Of Protection
IK05 IEC 50102
Ambient Air Temperature For Storage
-40-70°C
Head Type
standard
Shape Of Signaling Unit Head
round
Device Presentation
basic element
Device Short Name
ZB4
Product Certifications
GL || BV || DNV || CSA || LROS (Lloyds register of shipping) || UL Listed
Ambient Air Temperature For Operation
-40-70°C
Operator Profile
blue projecting, unmarked
Product Or Component Type
head for illuminated push-button
Electrical Shock Protection Class
class I IEC 60536
Overvoltage Category
class I IEC 60536
Bezel
Chrome Plated Metal
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Mechanical Durability
500000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Composition Code
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Ip Degree Of Protection
IP69 || IP69K || IP67 IEC 60529

Description

Extended Push Button, 22 mm, Maintained, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Blue, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
