  15. Illuminated Push Button Operator, 22 mm, Blue

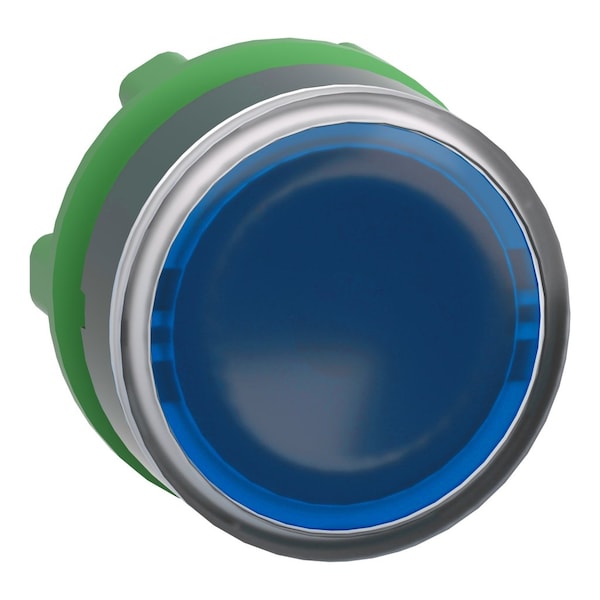

Schneider Electric Illuminated Push Button Operator, 22 mm, Blue ZB5AH063 - main

Illuminated Push Button Operator, 22 mm, Blue

  • Mfr # ZB5AH063

  • Zoro # G1685187

product price: $24.79
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AH063
Zoro #
G1685187
UPC #
785901386438
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
30 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Overall Width
1.14 in
Overall Depth
1.18 in
Manufacturer Warranty Length
18 mo
Overall Height
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Plastic
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Basic Material
Plastic
IP Rating
IP66
Color
Blue
Lamp Module Type
No Lamp Module Included
Lamp Type
No Lamp Module Included
NEMA Rating
13, 4X
Lamp Voltage
Dependent on Module Used
Lamp Module Voltage
Module Not Included
Type of Operator
Flush Button
Bezel
Plastic
Bezel Material
Plastic
Number of Operators
1
Series
XB5
Features
Snap-Fit Assembly, Visually Distinct at a Distance, Withstands Harsh Environments
Operator Profile
blue flush, unmarked
Head Type
standard
Shape Of Signaling Unit Head
round
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Ambient Air Temperature For Operation
-25-70°C
Device Presentation
basic element
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Electrical Composition Code
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Product Or Component Type
head for illuminated push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Ambient Air Temperature For Storage
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Electrical Shock Protection Class
class II IEC 60536
Protective Treatment
TH
Mechanical Durability
5000000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Compatibility
universal LED
Product Certifications
GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
Ik Degree Of Protection
IK05 IEC 50102
Device Short Name
ZB5
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators
Operator Material
Plastic
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
1

Description

Flush Push Button, 22 mm, Maintained, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Blue, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
