  15. Illuminated Push Button Operator, 22 mm, Green

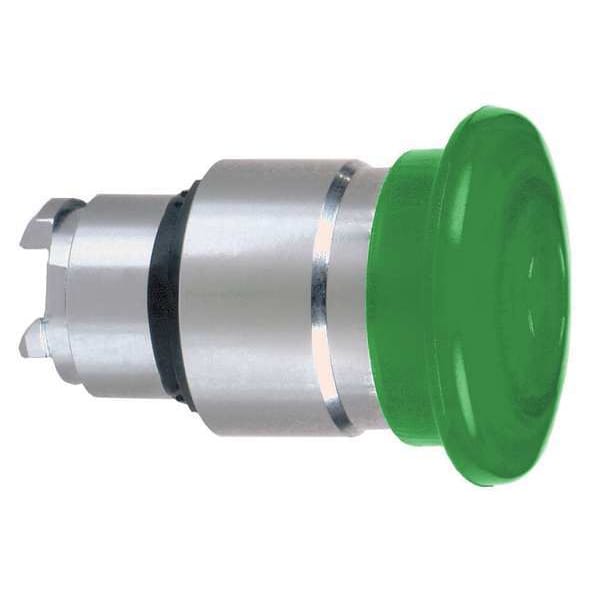

Schneider Electric Illuminated Push Button Operator, 22 mm, Green ZB4BW633 - main

Illuminated Push Button Operator, 22 mm, Green

  • Mfr # ZB4BW633

  • Zoro # G4596304

product price: $35.99
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW633
Zoro #
G4596304
UPC #
785901666608
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Depth
53 mm
Cad Overall Width
40 mm
Cad Overall Height
40 mm
Overall Width
1.57 in
Overall Height
1.57 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.09 in

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating
IP66
Color
Green
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
Lamp Module Type
No Lamp Module Included
Type of Operator
40mm Mushroom Head
Basic Material
Metal
Bezel
Chrome Plated Metal
NEMA Rating
13, 4X
Bezel Material
Metal
Number of Operators
1
Series
XB4
Features
Visually Distinct at a Distance, Snap-Fit Assembly, Withstands Harsh Environments
Shape Of Signaling Unit Head
round
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK05 EN 50102
Product Or Component Type
head for illuminated push-button
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Reset
push-pull
Electrical Composition Code
M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and double front mounting integral LED
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Overvoltage Category
class I IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Head Type
standard
Device Short Name
ZB4
Ambient Air Temperature For Operation
-40-70°C
Product Compatibility
universal LED
Protective Treatment
TH
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operator Profile
green mushroom Ø 40 mm, unmarked
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
UL Listed || DNV || GL || CSA || LROS (Lloyds register of shipping) || BV
Device Presentation
basic sub-assemblies
Mechanical Durability
500000 cycles
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated
Operator Material
Metal
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Mushroom Head Push Button, 22 mm, Maintained, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
