  15. Illuminated Push Button Operator, 30 mm, Red

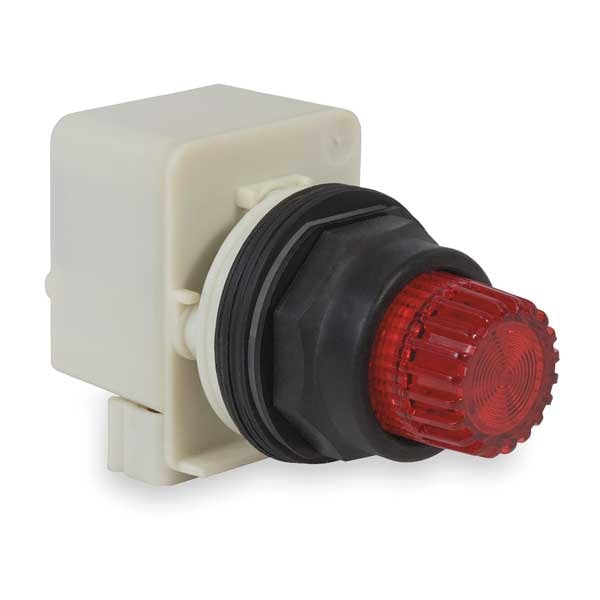

Schneider Electric Illuminated Push Button Operator, 30 mm, Red 9001SK2L1R - main

Illuminated Push Button Operator, 30 mm, Red

  • Mfr # 9001SK2L1R

  • Zoro # G1307126

product price: $152.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SK2L1R
Zoro #
G1307126
UPC #
785901852155
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Height
1.62 in
Overall Width
2.13 in
Overall Depth
3.07 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
Color
Red
Type of Operator
No Guard
Lamp Voltage
6V AC
Lamp Module Voltage
120V AC
Bezel
Plastic
Basic Material
Plastic
Lamp Type
LED
NEMA Rating
12, 3R, 4X
IP Rating
IP64
Lamp Module Type
Transformer
Replacement Lamp
4VCW2
Bezel Material
Plastic
Number of Operators
1
Features
Snap-Fit Assembly
Series
9001SK
Light Source
incandescent bulb
Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Device Short Name
9001SK
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Shape Of Signaling Unit Head
octagonal
Supply Frequency
50 to 60 Hz
Product Or Component Type
head for illuminated push-button
Ip Degree Of Protection
IP64
Cap/Operator Or Lens Colour
red
Contacts Type And Composition
without contact block
Operator Profile
projecting
Bulb Base
BA 9s
Light Block Supply
via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz, via integral transformer
[Us] Rated Supply Voltage
110 to 120 V
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
1
Operator Material
Plastic
Hazardous Location Specification
Not Rated
Product Type
Push Button Operators
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Lamp Voltage - Maximum
120 V AC

Description

Extended Push Button, 30 mm, Momentary, Type of Operator No Guard, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 12, 3R, 4X, IP Rating IP64, Legend Not Applicable, Standards CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR, Includes Incandescent Lamp, Features Snap-Fit Assembly
