Shop SCHNEIDER ELECTRIC

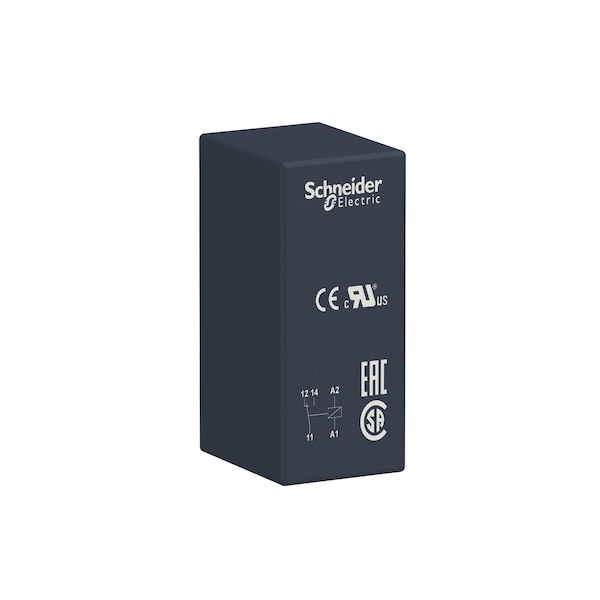

Interface plug-in relay, 12 A, 1 CO, 230, 230V AC Coil Volts, 1 C/O

  • Mfr # RSB1A120P7

  • Zoro # G600904842

product price:
$
5.15
/ea
Sold in multiples of 10 for $51.50

Key Features

Electrical Connection
PCB
Coil Voltage
230V AC
Current Rating
12 A
Contact Rating (AC)
12 A @ 250V AC
Contact Rating (DC)
12 A @ 28V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RSB1A120P7
Zoro #
G600904842
UPC #
-
Country of Origin
Austria

Details

Item
Interface plug-in relay,12 A,1 CO,230
Electrical Connection
PCB
Coil Voltage
230V AC
Current Rating
12 A
Contact Rating (AC)
12 A @ 250V AC
Contact Rating (DC)
12 A @ 28V DC
Contact Material
Silver Alloy (AgNi)
Power Consumption - Relay
0.75 VA
Standards
CSA C22.2 No 14; EN/IEC 61810-1; UL 508; CE; EAC
Pin Shape
flat (PCB type)
Switching Voltage
12/300 V DC
Protection Category
RT I
Coil Resistance
33000 Ohm
Operating Time
20 ms operating || 20 ms reset
Series
RSB; interface relay
Operating Temp. Range
-40-70°C AC)
Dielectric Strength
1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact
Switching Power
Max 3000 VA/336 W; Min 120 mW 10 mA, 12 V
Device Short Name
RSB
Operating Position
any position
Maximum Switching Voltage
300 V DC IEC
Average Resistance
33000 Ohm AC 20°C +/- 10 %
Ambient Air Temperature For Operation
-40-70°C AC)
Test Levels
level A group mounting
Shock Resistance
10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Maximum Switching Capacity
3000 VA/336 W
Control Type
without push-button
Device Presentation
complete product
Electrical Durability
100000 cycles, 12 A at 250 V, AC-1 NO, 100000 cycles, 6 A at 250 V, AC-1 NC
Operating Rate
<= 600 cycles/hour under load, <= 18000 cycles/hour no-load
Drop-Out Voltage Threshold
>= 0.15 Uc AC
Minimum Switching Capacity
120 mW 10 mA, 12 V
Mechanical Durability
10000000 cycles
Contact Operation
standard
Minimum Switching Current
10 mA
Ambient Air Temperature For Storage
-40-85°C
Vibration Resistance
+/- 1 mm 10-55 Hz)IEC 60068-2-6
[Ue] Rated Operational Voltage
184...345 V AC 50/60 Hz
Average Coil Consumption
0.75 VA AC
Series Name
interface relay
Ip Degree of Protection
IP40 conforming to IEC 60529
Marking
CE
[Ui] Rated Insulation Voltage
400 V IEC 60947
Load Current
12 A 250 V AC, 12 A 28 V DC
[Ithe] Conventional Enclosed Thermal Current
12 A -40-40°C
[Uimp] Rated Impulse Withstand Voltage
3.6 kV IEC 61000-4-5
Status Indicator
No Indicator
Base Shape
Square
Mounting Style
Plug In
Number of Pins
5
Contact Form
SPDT

Description

Interface plug-in relay,12 A,1 CO,230
