  10. /
  11. Power & General Purpose Relays
  12. /
  13. Interface plug-in relay, 12 A, 1 CO, 24, 24V AC Coil Volts, 1 C/O

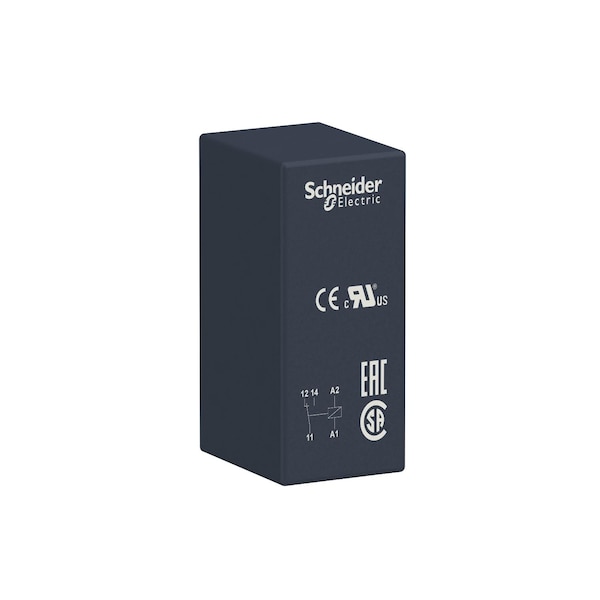

Schneider Electric Interface plug-in relay, 12 A, 1 CO, 24, 24V AC Coil Volts, 1 C/O RSB1A120B7 - main

Interface plug-in relay, 12 A, 1 CO, 24, 24V AC Coil Volts, 1 C/O

  • Mfr # RSB1A120B7

  • Zoro # G000904879

product price: $4.55
/ea
Sold in multiples of 2 for $9.10

Key Features

Electrical Connection
PCB
Coil Voltage
24V AC
Current Rating
12 A
Contact Rating (AC)
12 A @ 250V AC
Contact Rating (DC)
12 A @ 28V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RSB1A120B7
Zoro #
G000904879
UPC #
-
Country of Origin
Austria

Details

Item
Plug-In Relay
Electrical Connection
PCB
Coil Voltage
24V AC
Current Rating
12 A
Contact Rating (AC)
12 A @ 250V AC
Contact Rating (DC)
12 A @ 28V DC
Power Consumption - Relay
0.75 VA
Standards
CSA C22.2 No 14, IEC 61810-1, UL 508
Contact Material
Silver Alloy (AgNi)
Protection Category
RT I
Device Short Name
RSB
Shock Resistance
10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Ambient Air Temperature For Operation
-40-70°C AC)
Average Resistance
368 Ohm AC 20°C +/- 10 %
Vibration Resistance
+/- 1 mm 10-55 Hz)IEC 60068-2-6
[Ue] Rated Operational Voltage
19.2...36 V AC 50/60 Hz
Dielectric Strength
1000 V AC between contacts, 2500 V AC between poles, 5000 V AC between coil and contact
Marking
CE
Operating Time
20 ms operating, 20 ms reset
Operating Position
any position
Load Current
12 A 250 V AC, 12 A 28 V DC
Series Name
interface relay
Control Type
without push-button
Drop-Out Voltage Threshold
>= 0.15 Uc AC
Ambient Air Temperature For Storage
-40-85°C
[Ithe] Conventional Enclosed Thermal Current
12 A -40-40°C
Minimum Switching Current
10 mA
Minimum Switching Capacity
120 mW 10 mA, 12 V
Average Coil Consumption
0.75 VA AC
Mechanical Durability
10000000 cycles
[Ui] Rated Insulation Voltage
400 V IEC 60947
Ip Degree of Protection
IP40 conforming to IEC 60529
Contacts Type And Composition
1 C/O
[Uimp] Rated Impulse Withstand Voltage
3.6 kV IEC 61000-4-5
Electrical Durability
100000 cycles, 12 A at 250 V, AC-1 NO, 100000 cycles, 6 A at 250 V, AC-1 NC
Test Levels
level A group mounting
Shape of Pin
flat (PCB type)
Maximum Switching Capacity
3000 VA/336 W
Operating Rate
<= 600 cycles/hour under load, <= 18000 cycles/hour no-load
Switching Voltage
12 V
Device Presentation
complete product
Contact Operation
standard
Maximum Switching Voltage
300 V DC IEC
Switching Power
Max 3000 VA/336 W; Min 120 mW 10 mA, 12 V
Control Circuit Voltage
24 V AC 50/60 Hz
Series
RSB; interface relay
Rated Operational Voltage
19.2 to 36 V AC 50/60 Hz
Resistive Rated Load
12 A 250 V AC; 12 A 28 V DC
Rated Insulation Voltage
400 V IEC 60947
Operating Temp. Range
-40-70°C AC)
Rated Impulse Withstand Voltage
3.6 kV IEC 61000-4-5
Product Certifications
EAC; UL; CSA
Pin Shape
flat (PCB type)
Minimum Switching Voltage
12 V
Conventional Enclosed Thermal Current
12 A -40 to 104°F (-40 to 40°C)
Average Coil Resistance
368 Ohm AC 20°C +/- 10%
Coil Resistance
368 Ohm
Status Indicator
No Indicator

Description

Interface plug-in relay,12 A,1 CO,24
