  13. Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V AC

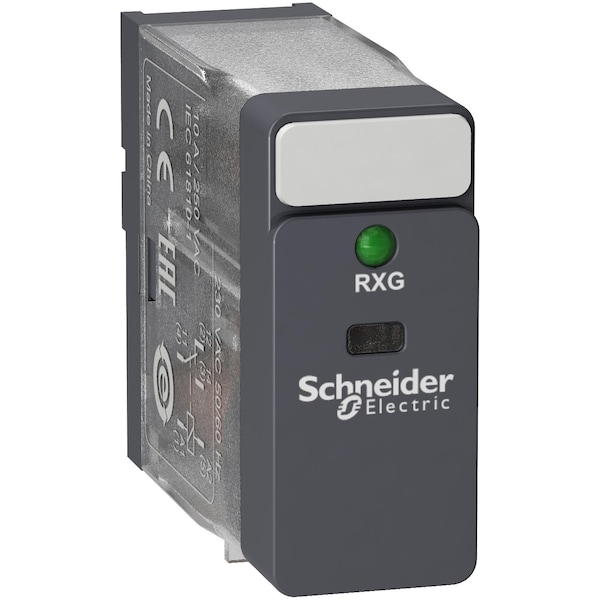

Schneider Electric Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V AC RXG13B7 - main

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V AC

  • Mfr # RXG13B7

  • Zoro # G1982636

product price: $10.99
/ea
Sold in multiples of 10 for $109.90

Key Features

Electrical Connection
Pin
Coil Voltage
24V AC
Current Rating
10 A
Contact Rating (AC)
10A @ 250V AC
Contact Rating (DC)
10A @ 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG13B7
Zoro #
G1982636
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Electrical Connection
Pin
Coil Voltage
24V AC
Current Rating
10 A
Contact Rating (AC)
10A @ 250V AC
Contact Rating (DC)
10A @ 30V DC
Features
Insulation Class F; flag Local Signalling; With Status Led
Contact Material
Silver Alloy (AgSnO2In2O3)
Power Consumption - Relay
0.82VA
Standards
CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Protection Category
RT I
Coil Resistance
260 Ohm +/- 10 %
Dielectric Voltage
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Switching Voltage
250 V AC || 30 V DC
Operating Temp. Range
-40-70°C
Relative Humidity
10-85 %
Utilisation Coefficient
0.2
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Ambient Air Temperature For Operation
-40-70°C
Series Name
interface relay
Device Short Name
RXG
Minimum Switching Capacity
500 mW at 100 mA, 5 V DC
Insulation Resistance
1000 MOhm at 500 V DC
Ambient Air Temperature For Storage
-40-85°C
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Test Levels
level A group mounting
Overvoltage Category
III
Vibration Resistance
3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Operating Rate
<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical Durability
10000000 cycles
Device Presentation
complete product
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Average Consumption
0.82 VA 60 Hz
Control Circuit Voltage Limits
0.8...1.1 Uc AC
Electrical Durability
100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Torque Value
0.8 N.m
Load Current
10 A 250 V AC
Pollution Degree
2
Maximum Switching Capacity
2500 VA
Shock Resistance
20 gn in operation, 100 gn not in operation
Colour of Cover
standard
Ip Degree of Protection
IP40
Status Indicator
LED Indicator

Description

Relay,1CO 10A@250VAC,24VAC,Coil Led
