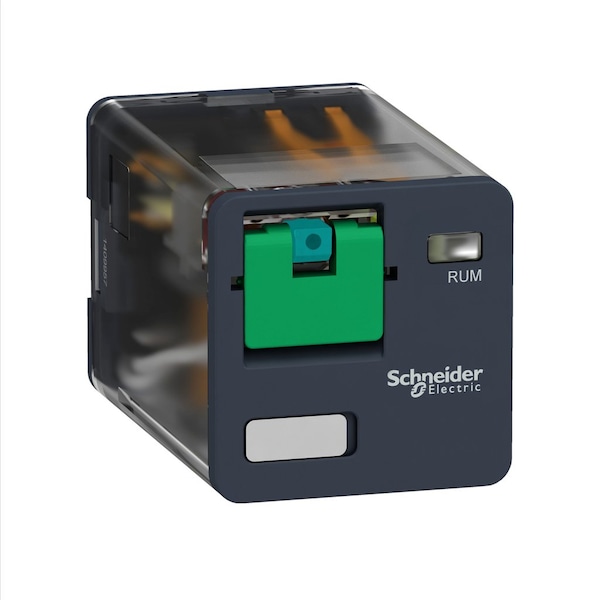

Schneider Electric Universal plug-in relay - Zelio RUM - 3, 60V DC Coil Volts, 3 C/O RUMC31ND - main

Universal plug-in relay - Zelio RUM - 3, 60V DC Coil Volts, 3 C/O

  • Mfr # RUMC31ND

  • Zoro # G900906232

product price:  $17.29
/ea
Sold in multiples of 10 for $172.90

Key Features

Coil Voltage
60V DC
Current Rating
10A
Contact Rating (AC)
10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
Contact Rating (DC)
10 A @ 28V DC (NO), 5 A @ 28 V DC (NC), 10 A @ 30 V DC
Features
Lockable Test Button
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RUMC31ND
Zoro #
G900906232
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
60V DC
Current Rating
10A
Contact Rating (AC)
10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
Contact Rating (DC)
10 A @ 28V DC (NO), 5 A @ 28 V DC (NC), 10 A @ 30 V DC
Features
Lockable Test Button
Standards
UL 508; CSA C22.2 No 14; EN/IEC 61810-1; EAC
Power Consumption - Relay
1.4 W
Contact Material
AgNi
Switching Voltage
250 V IEC
Series
RUM; Universal
Operating Temp. Range
-40-55°C
Pin Shape
cylindrical
Protection Category
RT I
Dielectric Strength
1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Switching Power
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
Coil Resistance
2790 Ohm
Operating Time
20 ms at nominal voltage
Utilisation Coefficient
0.2
Shock Resistance
10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
Minimum Switching Capacity
170 mW 10 mA, 17 V
Vibration Resistance
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Drop-Out Voltage Threshold
>= 0.1 Uc DC
Device Short Name
RUM
Average Resistance
2790 Ohm 20°C +/- 15 %
Pollution Degree
2
Load Current
10 A 250 V AC, 10 A 28 V DC
Operating Position
any position
Mechanical Durability
5000000 cycles
Rated Operational Voltage Limits
48...66 V DC
Electrical Durability
100000 cycles resistive
Ambient Air Temperature For Operation
-40-55°C
Ip Degree of Protection
IP40
Series Name
Universal
Ambient Air Temperature For Storage
-40-85°C
Device Presentation
complete product
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50µs)
Test Levels
level A group mounting
Operating Rate
<= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Maximum Switching Capacity
2500 VA/280 W
Status Indicator
No Indicator
Contact Form
3PDT
Electrical Connection
Plug In
Number of Pins
11
Base Shape
Octal

Description

Universal plug-in relay - Zelio RUM - 3
