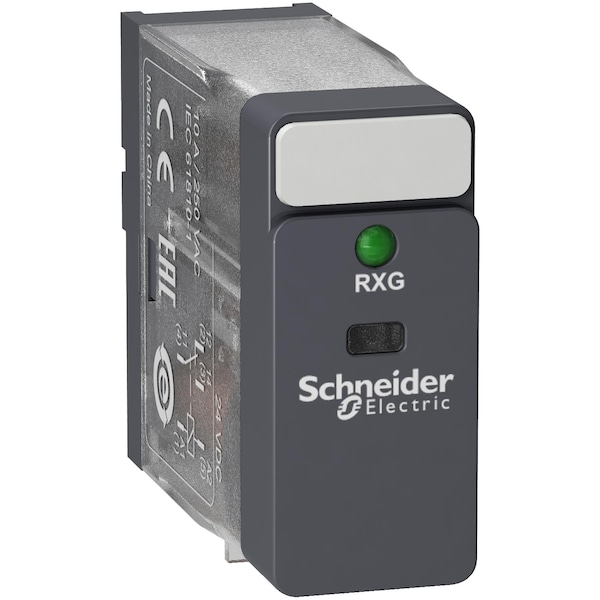

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V DC

Plug-In Relay

Pin

24V DC

10 A

10A @ 250V AC

10A @ 30V DC

Silver Alloy (AgSnO2In2O3)

CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL

Insulation Class F; flag Local Signalling; With Status Led

-40-70°C

1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation

1100 Ohm +/- 10 %

RT I

250 V AC || 30 V DC

500 mW at 100 mA, 5 V DC

10000000 cycles

1000 MOhm at 500 V DC

2500 VA

level A group mounting

20 gn in operation, 100 gn not in operation

>= 0.1 Uc DC

-40-70°C

0.8 N.m

3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation

complete product

III

250 V IEC, 300 V CSA, 300 V UL

10-85 %

100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C

IP40

<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load

-40-85°C

standard

10 A -40-55°C

interface relay

10 A 250 V AC

0.2

2

RXG

LED Indicator
