- Item
- Level Ctrl Relay24-240VAC In 5k-100koh
- Standards
- EN/IEC 60255-1
- Relative Humidity
- 93-97 % 25-55°C IEC 60068-2-30
- Run-Up Delay At Power-Up
- 0.6 s
- Mechanical Durability
- 10000000 cycles
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Minimum Switching Current
- 10 mA 5 V DC
- Maximum Power Consumption In W
- 1.5 W DC
- Relay Monitored Parameters
- detection by resistive probes
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Mounting Support
- 35 mm DIN rail conforming to EN/IEC 60715
- Ambient Air Temperature For Storage
- -40-70°C
- Overvoltage Category
- III IEC 60664-1
- Immunity To Microbreaks
- 100 ms DC || 90 ms AC
- Maximum Switching Current
- 8 A AC
- Maximum Electrode Current
- 1 mA
- Sensitivity Adjustment
- 5-100 %
- Contacts Type And Composition
- 2 C/O
- Mounting Position
- any position
- Nominal Output Current
- 8A
- Contacts Material
- cadmium free
- Insulation
- between supply and measurement
- Relay Name

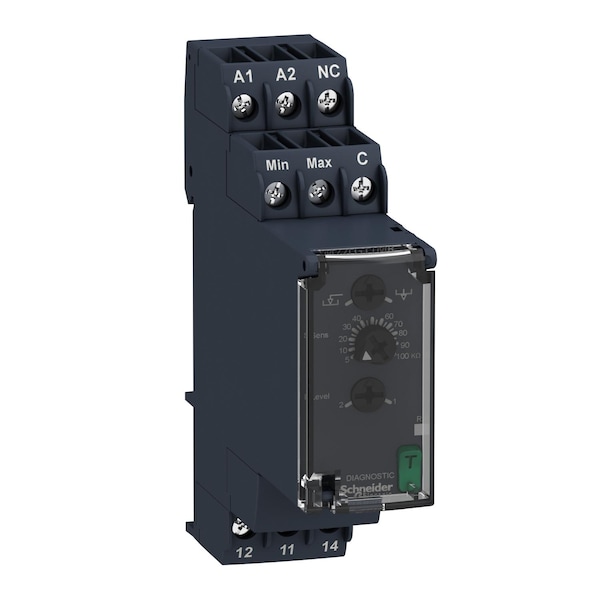

- RM22L
- Electromagnetic Compatibility
immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Relay Type
- level control relay
- Pollution Degree
- 3 IEC 60664-1
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Time Delay Type
- without
- Utilisation Category
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Output Contacts
- 2 C/O
- Maximum Supply Current For Sensors
- 1 mA
- Product Or Component Type
- level control relay
- Product Certifications
- GL || RCM || CCC || CSA || UL || EAC || CE
- Electrical Durability
- 100000 cycles
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Switching Capacity In Va
- 2000 VA
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Maximum Cable Distance Between Devices
- 1000 m probe and delay
- Housing Material
- self-extinguishing plastic
- Repeat Accuracy
- +/- 2 % time delay
- Cable Capacitance
- 1 nF HS (High Sensitivity) probe cable || 2.2 nF St (Standard Sensitivity) probe cable || 4.7 nF LS (Low Sensitivity) probe cable
- Maximum Electrode Voltage
- 12 V AC
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Sensitivity Scale
- 5...100 kOhm St (Standard Sensitivity)
- Connections - Terminals
screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
- Maximum Switching Voltage
- 250 V AC
- Measurement Range
- 5...100 kOhm
- Control Type
- with test button
- Range of Product
- Harmony Control Relays
