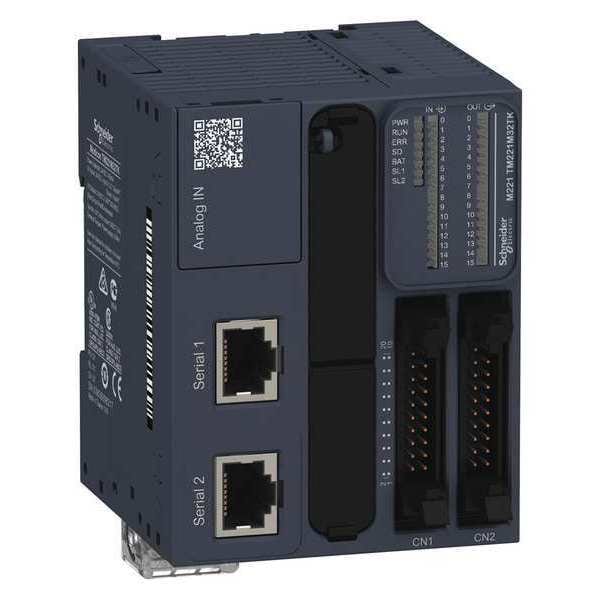

Logic Controller, 0.1A, 16 Outputs, 24VDC

Logic Controller, 0.1A, 16 Outputs, 24VDC

Mfr # TM221M32TK
Zoro # G0270201

$475.99

Free Shipping & Returns

Key Features

Output Type

(16) Transistor

Number of Outputs

Number of Inputs

Features

SoMachine Basic Programming

Memory

256 KB

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

TM221M32TK

Zoro #

G0270201

UPC #

785901763963

Country of Origin

Taiwan, Province of China

Dimensions

Depth

3 in

Width

2.75 in

Height

4.17 in

Maximum Size Of Object Areas

8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 512 %M memory bits || 255 %C counters

Overall Width

2.76 in

Overall Depth

2.76 in

Overall Height

3.54 in

Details

Item

PLC

Output Type

(16) Transistor

Number of Outputs

Number of Inputs

Features

SoMachine Basic Programming

Memory

256 KB

Counters

Port Type

Modbus Serial (2xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.)

Amps

0.1 A

Input Voltage

24V AC/DC

Timers

Programmable

Slots

Display

7 Segment LED

Clock

Yes

Standards

EN/IEC 60664-1 || EN/IEC 61010-2-201 || EN/IEC 61131-2

Response Time

35 Âµs turn-off, I2 to I5 input || 5 Âµs turn-on, I0, I1, I6, I7 fast input || 35 Âµs turn-on, other terminals input || 5 Âµs turn-off, I0, I1, I6, I7 fast input || 100 Âµs turn-off, other terminals input || 5 Âµs turn-on, turn-off, Q0 to Q1 output || 50 Âµs turn-on, turn-off, Q2 to Q3 output || 300 Âµs turn-on, turn-off, other terminals output

Product Type

Programmable Logic Controller

Communication Service

Modbus master || Modbus slave

Mechanical Durability

20000000 cycles transistor output

Surge Withstand

2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5

Discrete Output Logic

positive logic (source)

Realtime Clock

with

Memory capacity

256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Analogue Input Resolution

10 bits

Discrete Output Type

transistor

Exct Time For Event Task

60 Âµs response time

Insulation

between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs

Resistance To Magnetic Fields

30 A/m 50/60 Hz EN/IEC 61000-4-8

Communication Port Protocol

USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Local Signalling

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)

Product Or Component Type

logic controller

Transmission Rate

1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Absolute Accuracy Error

+/- 1 % of full scale analog input

Data Backed Up

256 kB built-in flash memory backup of application and data

Configurable Filtering Time

0 ms input || 3 ms input || 12 ms input

Counter Function

Single phase; A/B; Pulse/direction

Conversion Time

1 ms per channel + 1 controller cycle time analog input

Backup Time

1 year 25 Â°C by interruption of power supply)

Discrete Input Current

7 mA discrete input || 5 mA fast input

Supply Voltage Limits

20.4-28.8 V

Execution Time For 1 K instruction

0.3 ms event and periodic task; 0.7 ms other instruction

Resistance To Fast Transients

2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)

Vibration Resistance

3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Pollution Degree

<= 2

Relative Humidity

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Discrete Output Number

16 transistor 2 fast output

Output Frequency

100 kHz fast output (PWM/PLS mode) Q0 to Q1 || 5 kHz output Q2 to Q3 || 0.1 kHz output Q4 to Q15

Maximum Cable Distance Between Devices

shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Control Signal Type

single phase || A/B || pulse/direction

Ambient Air Temperature For Operation

-10-55 Â°C horizontal installation) || -10-35 Â°C vertical installation)

Discrete I/O Number

Ip Degree Of Protection

IP20 with protective cover in place

Voltage State 0 Guaranteed

<= 5 V input

Discrete Input Number

16 , discrete input 4 fast input IEC 61131-2 Type 1

Discrete Input Voltage

24 V

Maximum Leakage Current

0.1 mA transistor output

Mounting Support

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Ambient Air Temperature For Storage

-25-70 Â°C

Clock Drift

<= 30 s/month 25-25 Â°C

Resistance To Electrostatic Discharge

8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Immunity To Microbreaks

10 ms

Maximum Tungsten Load

<2.4 W output and fast output

[Us] Rated Supply Voltage

24 V DC

Discrete Output Voltage

24 V DC

Analogue Input Number

2 0 to 10 V

Positioning Functions

PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)

Marking

Supply

serial 1)serial link supply 5 V, <200 mA

Permitted Overload On Inputs

+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Execution Time Per Instruction

0.2 Âµs Boolean

Inrush Current

35 A

Resistance To Electromagnetic Fields

10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3

Maximum Number Of I/O Expansion Module

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Battery Type

BR2032 lithium non-rechargeable 4 year(s)

Product Certifications

CSA || IACS E10 || cULus || LR || RCM || DNV-GL || EAC || ABS

Time For Event Task

60 Âµs response time

Data Storage Equipment

2 GB SD card optional)

Storage Altitude

0-3000 m

Shock Resistance

147 m/sÂ² 11 ms

Discrete Output Current

0.1 A

Maximum Power Consumption In W

22.3 W 24 V with max number of I/O expansion module) || 3.5 W 24 V without I/O expansion module)

Protection Type

short-circuit and overload protection with automatic reset || short-circuit protection on output || overload and short-circuit protection 0.2 A

Function Available

PLS || PWM || frequency generator

Maximum Current Per Output Common

1.6 A

Input Impedance

3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Electromagnetic Emission

conducted emissions 79 dBÃŽÂ¼V/m QP/66 dBÃŽÂ¼V/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBÃŽÂ¼V/m QP/60 dBÃŽÂ¼V/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120 to 69 dBÂµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃŽÂ¼V/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBÃŽÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃŽÂ¼V/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃŽÂ¼V/m QP class A 10 m)200-1000 MHz EN/IEC 55011

Reset Time

1 s automatic reset

Power Supply Output Current

0.52-0.52 A 5 V expansion bus || 0.48-0.48 A 24 V expansion bus

Discrete Input Voltage Type

Operating Altitude

0 to 6561.68 ft (0 to 2000 m)

Integrated Connection Type

USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485

Lsb Value

10 mV

Voltage State 1 Guaranteed

>= 15 V input

Resistance To Conducted Disturbances

10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Environmental Characteristic

ordinary and hazardous location

Regulation Loop

adjustable PID regulator up to 14 simultaneous loops

Maximum Voltage Drop

<1 V

Application Structure

1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks

Counting Input Number

4 fast input (HSC mode) 100 kHz 32 bits

Electrical Connection

terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || HE-10 connector, 20 for inputs || HE-10 connector, 20 for outputs

Execution Time For 1 Kinstruction

0.3 ms event and periodic task || 0.7 ms other instruction

Discrete Input Logic

sink or source (positive/negative)

Number of Counters

Communication Protocol

Modbus ASCII, Modbus RTU, SoMachine-Network

AC Voltage Rating

24V AC

Output Circuit Voltage - Maximum

24 V DC

Input Type

(16) Discrete, (2) Analog

Clock Included

Memory Capacity

2 GB

DC Voltage Rating

24V DC

Input Circuit Voltage - Maximum

24 V

Series

Display Type

LED

Number of Slots

Current

100 mA

Mounting Style

DIN Rail

Input Circuit Current - Maximum

7 mA

Communication Protocol Method

USB

Output Circuit Current - Maximum

0.1 A

Description

PLC, Input Voltage 24V AC/DC, Output Type (16) Transistor, 0.1 A Amps, 2 Slots, Number of Inputs 16, Number of Outputs 16, Counters 4, Timers Programmable, Yes Clock, 7 Segment LED Display, Port Type Modbus Serial (2xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.), Memory 256 KB, Depth 3 in, Height 4.17 in, Width 2.75 in
