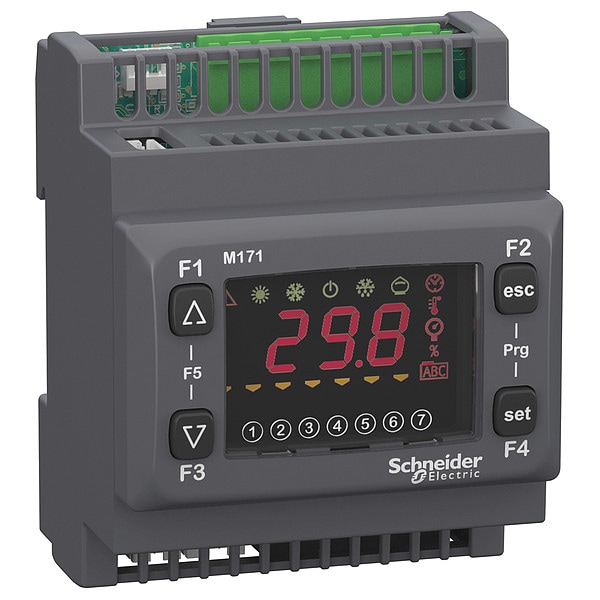

Logic Controller, 11 Inputs, 11 Outputs

Logic Controller, 11 Inputs, 11 Outputs

Mfr # TM171ODM22R
Zoro # G3462524

$201.99

Free Shipping & Returns

Key Features

Output Type

(5) Analog, (6) Digital

Number of Outputs

Number of Inputs

Features

Ecostruxure Machine Expert Software

Port Type

1 LAN Expansion Bus, 1 RS485

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

TM171ODM22R

Zoro #

G3462524

UPC #

785901711759

Country of Origin

Italy

Dimensions

Width

2.91 in

Height

1.26 in

Depth

2.99 in

Overall Depth

2.99 in

Overall Width

2.91 in

Overall Height

1.26 in

Details

Item

PLC

Output Type

(5) Analog, (6) Digital

Number of Outputs

Number of Inputs

Features

Ecostruxure Machine Expert Software

Port Type

1 LAN Expansion Bus, 1 RS485

Standards

CE, CSA, CURUS, EAC, EN/IEC 60730

Input Voltage

12 to 24V AC/DC

Amps

2 A

Description/Special Features

contacts usage Volt-free contacts, Discount Schedule PC12, Environmental Disclosure Product Environmental Profile, Modbus, Modicon M171 Optimized Display 22 I/Os, mounting support Flush mounting, product specific application HVAC and pumping solution, relative humidity 10¿90 % non-condensing

Slots

1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link

Display

4 Seven-Segment Display

Clock

Yes

Timers

Programmable

Product Type

Programmable Logic Controller

Analogue Input Number

2 configurable || 3 analog input NTC

Contacts Usage

volt-free contacts

Relative Humidity

10-90 % non-condensing

Ambient Air Temperature For Storage

-40-85 Â°C

Discrete Output Current

2 A relay

Number Of Port

1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)

[Us] Rated Supply Voltage

12 to 24 V +/- 10 % AC || 24 V +/- 10 % DC

Local Signalling

6 LEDs (red) || 5 LEDs (green) || for programmable 7 LEDs (amber)

Display Type

LED

Discrete Input Number

Product Or Component Type

controller

Input/Output Number

5 analog output || 6 digital input || 5 analog input || 6 digital output

Discrete Input Logic

sink or source (positive/negative)

Discrete Output Number

1 open collector || 3 relay outputs SPST with same common || 2 relay outputs SPST with independent common

Product Certifications

CSA || EAC || CE || cURus

Power Consumption In W

4 W

Product Specific Application

HVAC and pumping solution

Realtime Clock

built-in -20-55 Â°C

Number of Inputs/Outputs

Pollution Degree

Mounting Support

flush mounting

Ip Degree Of Protection

IP20

Upgradeability

Upgradeable through digital modules and upgraded components

Overvoltage Category

Sensor Power Supply

12-12 V DC 85 mA || 5-5 V DC 20 mA

Analogue Output Number

2 PWM/PPM || 3 voltage 0 to 10 V

Ambient Air Temperature For Operation

-20-55 Â°C UL 60730-1

Analogue Input Type

voltage 0 to 5 V ratiometric) || voltage 0 to 10 V || NTC temperature probe - 50 to 100 Â°C 0.1 Â°C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V

Input Type

(5) Analog, (6) Digital

Output Circuit Voltage - Minimum

0 V

Output Circuit Voltage - Maximum

10 V

Input Circuit Voltage - Minimum

0 V

Output Circuit Current - Maximum

2 A

Current

2 A

Input Circuit Current - Minimum

4 mA

Input Circuit Voltage - Maximum

10 V

AC Voltage Rating

12 to 24V AC

DC Voltage Rating

24V DC

Series

M171

Mounting Style

Surface

Input Circuit Current - Maximum

20 mA

Clock Included

Description

PLC, Input Voltage 12 to 24V AC/DC, Output Type (5) Analog, (6) Digital, 2 A Amps, 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link Slots, Number of Inputs 11, Number of Outputs 11, Timers Programmable, Yes Clock, 4 Seven-Segment Display Display, Port Type 1 LAN Expansion Bus, 1 RS485
