50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Product Certifications
C-tick || CSA || GL || UL || GOST
Product Or Component Type
compact smart relay
Input Impedance
350 kOhm discrete input
Connections - Terminals
screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mm² AWG 24 to AWG 18) flexible with cable end
Voltage State 1 Guaranteed
>= 79 V discrete input
Power Consumption In Va
7 VA without extension
Disturbance Radiated/Conducted
class B EN 55022-11 group 1
Display Type
LCD
AC Voltage Rating
100 to 240V AC
Number of Timers
16
Input Type
(6) Discrete
Output Circuit Current - Maximum
8 A
Output Circuit Voltage - Maximum
30 V DC, 250 V AC
Input Circuit Voltage - Maximum
240 V AC
Output Circuit Voltage - Minimum
5 V DC, 24 V AC
Input Circuit Voltage - Minimum
100 V AC
Number of Counters
16
Mounting Style
DIN Rail
Input Circuit Current - Maximum
0.6 mA
Clock Included
Clock Not Included
Series
SR2
Current
8 A
Description

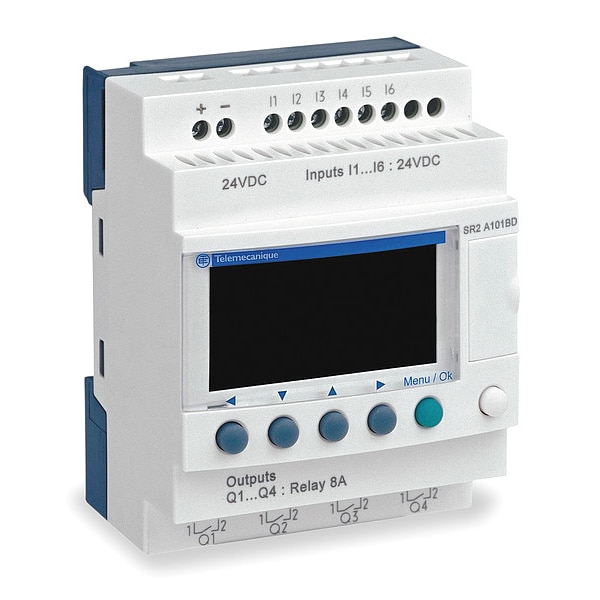

Compact Smart Relay, Input Voltage 100 to 240V AC, Output Type (4) Relay, 8 A Amps, Number of Inputs 6, Number of Outputs 4, Counters 16, Timers 16, No Clock, LCD Display, Depth 3.9 in, Height 3.5 in, Width 2.5 in
