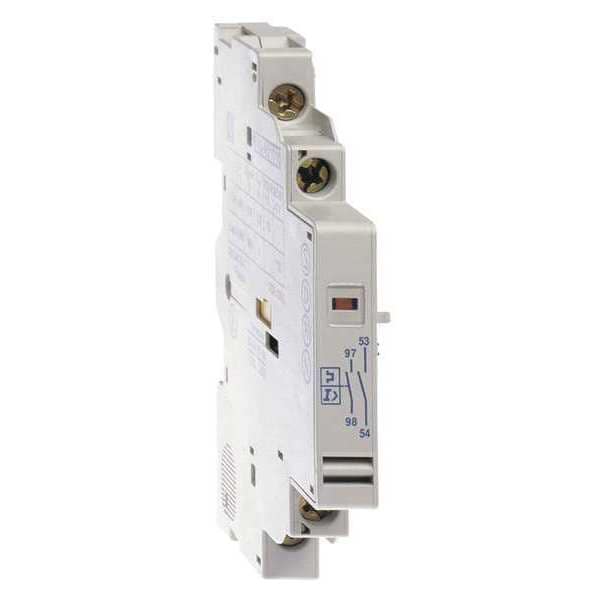

Schneider Electric Manstarter Fault Signaling Contact 575Va GVAD0110 - main

Manstarter Fault Signaling Contact 575Va

  • Mfr # GVAD0110

  • Zoro # G0561596

product price:  $58.95
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Terminal Connection Type
Screw Clamp
Standards
UKCA
Features
Mercury Free
Operating Voltage
48 to 690V AC; 24 to 240V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
GVAD0110
Zoro #
G0561596
UPC #
785901212393
Country of Origin
Korea, Republic of

Dimensions

Overall Depth
66 mm
Overall Width
9.3 mm
Overall Height
89 mm

Details

Item
Motor Starter Auxiliary Contact Block
Auxiliary Contact Form
1NC/1NO
Terminal Connection Type
Screw Clamp
Standards
UKCA
Features
Mercury Free
Operating Voltage
48 to 690V AC; 24 to 240V DC
Weight
0.055 kg
Mechanical Durability
100000 cycles
Rated Operational Power in VA
300 VA 48 V AC-15 100000 cycles; 414 VA 690 V AC-15 100000 cycles; 500 VA 110 to 127 V AC-15 100000 cycles; 500 VA 500 V AC-15 100000 cycles; 650 VA 440 V AC-15 100000 cycles; 720 VA 230 to 240 V AC-15 100000 cycles; 850 VA 380 to 415 V AC-15 100000 cycles; 36 VA 24 V AC-14 1000 cycles; 48 VA 48 V AC-14 1000 cycles; 72 VA 110 to 127 V AC-14 1000 cycles
Tightening Torque
12.39 lbf.in (1.4 N.m) screw clamp terminals
Pole Contact Composition
1 NO + 1 NC
Environmental Characteristic
Normal environment
Protection Type
GB2CB to circuit breaker; GG fuse 10 A
Rated Insulation Voltage
690 V IEC 60947-1; 300 V UL 508; 300 V CSA C22.2 No 14
Color
Dark Gray
Minimum Switching Voltage
17 V
Mounting Location
Left side
Auxiliary Contacts Operation
Fault signal 1 NC
Rated Operational Power in W
120 W 240 V DC-13 100000 cycles; 140 W 110 V DC-13 100000 cycles; 140 W 24 V DC-13 100000 cycles; 180 W 60 V DC-13 100000 cycles; 240 W 48 V DC-13 100000 cycles; 15 W 48 V DC-13 1000 cycles; 24 W 24 V DC-13 1000 cycles; 9 W 60 V DC-13 1000 cycles
Conventional Free Air Thermal Current
6 A; 2.5 A for fault signalling
Minimum Switching Current
5 mA
Compatible Manufacturer Model Number
GV2ME; GV2L; GV3P; GV2P; GV3L; GV2LE; GV2RT

Description

Manstarter Fault Signaling Contact 575Va
