  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 0.63 A

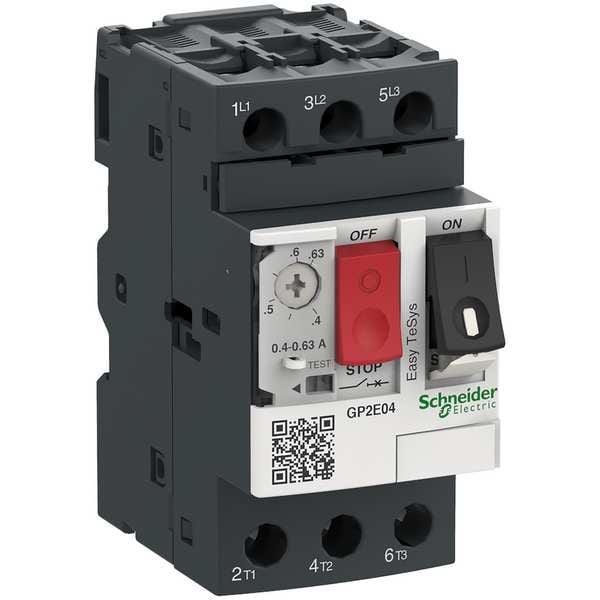

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 0.63 A GP2E04 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 0.63 A

  • Mfr # GP2E04

  • Zoro # G803481140

product price: $72.25
/ea
Sold in multiples of 24 for $1,734.00

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
0.63 A
Series
TeSys Easy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GP2E04
Zoro #
G803481140
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Width
1.77 in
Overall Height
3.5 in
Mounting Hole Distance - Height
1.97 in
Overall Depth
3.09 in
Mounting Hole Distance - Width
1.38 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
0.63 A
Series
TeSys Easy
Standards
cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1
Phase Loss Sensitivity
Yes
Pilot Light
No
Description/Special Features
Thermal-Magnetic Trip Unit Technology
Mechanical Operating Durability
100,000
Terminal Connection Type
Screw Clamp Terminals
Overload Protection Type
Thermal
Electrical Operating Durability
100,000
Maximum Operating Temperature
140 Degrees F
Resistance Properties
Fire Resistant
Minimum Operating Temperature
-4 Degrees F
Maximum Voltage Rating
690V AC
Mounting Style
DIN Rail
Starter Style
IEC
NEMA Enclosure Rating
No Enclosure
Minimum Overload Relay Current Setting
0.4 A
Frequency
50/60 Hz
IP Rating
IP20
Includes Pilot Light
No
Fire Resistance
960°C IEC 60695-2-1
Operating Position
any position
Ik Degree Of Protection
IK04
Suitability For Isolation
yes IEC 60947-1
Ambient Air Temperature For Storage
-40-80°C
Range
Easy TeSys
Phase Failure Sensitivity
yes IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Product Name
Easy TeSys GP2E
Device Application
motor
Utilisation Category
AC-3 IEC 60947-4-1 || category A IEC 60947-2
Network Type
AC
Trip Unit Technology
thermal-magnetic
Maximum Operating Rate
25 cyc/h
Rated Duty
continuous IEC 60947-4-1
Magnetic Tripping Current
8-8 A
Trip Unit Rating
0.4-0.63 A
Tightening Torque
1.7 N.m screw clamp terminals
Device Short Name
GP2E
Operating Altitude
6561.68 ft (2000 m)
Protective Treatment
TH
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Power Dissipation Per Pole
2.5 W
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 0.63 A, Series TeSys Easy, Maximum Overload Relay Current Setting 0.63 A, Minimum Overload Relay Current Setting 0.4 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure, Number of Required Thermals Not Applicable, Overload Protection Type Thermal, Starter Style IEC, Terminal Connection Type Screw Clamp Terminals, IP Rating IP20
