Shop SCHNEIDER ELECTRIC

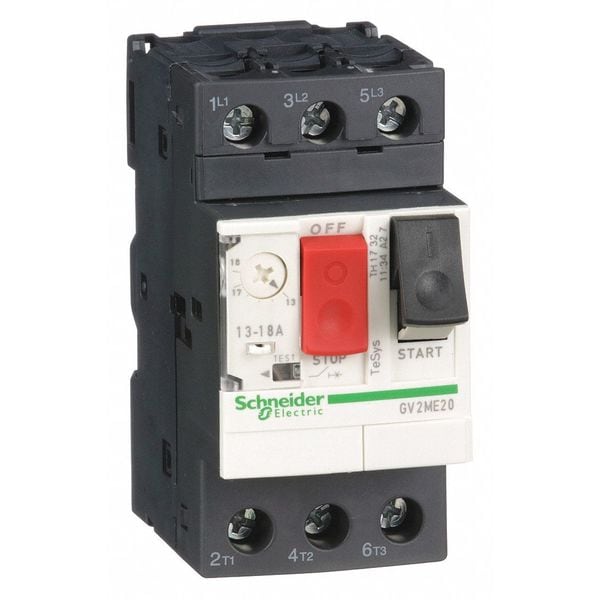

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 18 A

  • Mfr # GV2ME20

  • Zoro # G2267167

product price:
$
251.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
18 A
Series
TeSys Deca
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GV2ME20
Zoro #
G2267167
UPC #
785901211990
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Width
1.77 in
Overall Depth
3.09 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
18 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Pilot Light
No
HP @ 3 Phase - 460-575V
10
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
Phase Loss Sensitivity
Yes
HP @ 1 Phase - 230V
3 hp
HP @ 3 Phase - 575V
10 hp
Thermal Protection Adjustment Range
13-18 A IEC 60947-4-1
Motor Power Kw
7.5-7.5 kW 400/415 V AC 50/60 Hz || 9-9 kW 500 V AC 50/60 Hz || 15-15 kW 690 V AC 50/60 Hz
Trip Unit Technology
thermal-magnetic
Power Dissipation Per Pole
2.5 W
Phase Failure Sensitivity
yes IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Device Short Name
GV2ME
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Tightening Torque
1.7 N.m screw clamp terminal
Ik Degree Of Protection
IK04
Rated Duty
continuous IEC 60947-4-1
Ambient Air Temperature For Storage
-40-80°C
Device Application
motor protection
Network Type
AC
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Climatic Withstand
IACS E10
Operating Altitude
6561.68 ft (2000 m)
Range
TeSys Deca
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Magnetic Tripping Current
223-223 A
Fire Resistance
960°C IEC 60695-2-11
Color
dark grey
Product Name
TeSys GV2 || TeSys Deca
Minimum Overload Relay Current Setting
13 A
Status Indicator
No Indicator
Resistance Properties
Fire Resistant
Frequency
50/60 Hz
Maximum Voltage Rating
690V AC
Minimum Operating Temperature
-4 Degrees F
Horsepower @ Single Phase - 120V AC
1 hp
IP Rating
IP20
Starter Style
IEC
Horsepower @ Three Phase - 208V AC
5 hp
Maximum Overload Relay Current Setting
18 A
Horsepower @ Single Phase - 240V AC
3 hp
Mechanical Operating Durability
100,000
Horsepower @ Three Phase - 240V AC
3 hp
Electrical Operating Durability
100,000
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 600V AC
10 hp
Overload Protection Type
Thermal
Includes Pilot Light
No
NEMA Enclosure Rating
No Enclosure
Maximum Operating Temperature
140 Degrees F
Terminal Connection Type
Screw Clamp Terminals
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 50% 400/415 V AC 50/60 Hz IEC 60947-2; 50% 440 V AC 50/60 Hz IEC 60947-2; 75% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1 hp, Horsepower @ Single Phase - 240V AC 3 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 18 A, Horsepower @ Three Phase - 208V AC 5 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting 18 A
