  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 32 A

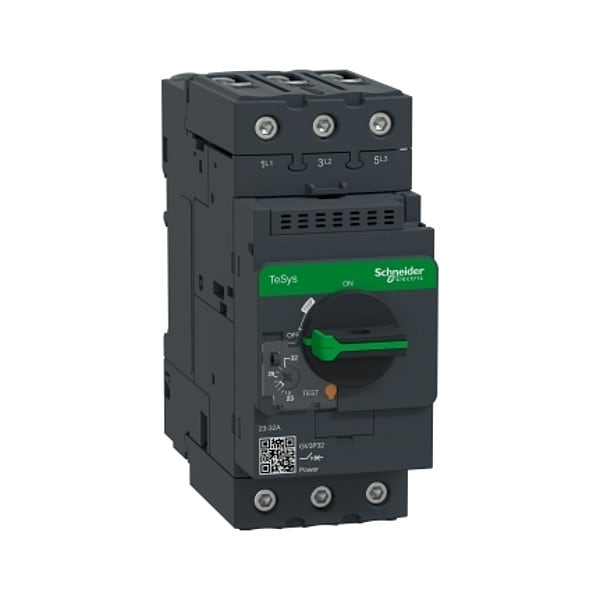

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 32 A GV3P32 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 32 A

  • Mfr # GV3P32

  • Zoro # G0562138

product price: $398.69
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
32 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV3P32
Zoro #
G0562138
UPC #
785901492337
Country of Origin
France

Dimensions

Overall Depth
5.35 in
Overall Width
2.17 in
Overall Height
5.2 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
32 A
Series
TeSys Deca
Standards
CSA C22.2 No 60947-4-1, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1
Phase Loss Sensitivity
Yes
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Overload Protection Type
Thermal
Starter Style
IEC
Resistance Properties
Fire Resistant
Mounting Style
DIN Rail
Frequency
50/60 Hz
Terminal Connection Type
Screw Clamp Terminals
Maximum Voltage Rating
690V AC
Minimum Operating Temperature
-4 Degrees F
NEMA Enclosure Rating
No Enclosure
Minimum Overload Relay Current Setting
23 A
Electrical Operating Durability
50,000
Mechanical Operating Durability
50,000
Phase Failure Sensitivity
yes IEC 60947-4-1
Motor Power Kw
15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz
Color
dark grey
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
Network Type
AC
Utilisation Category
AC-3 IEC 60947-4-1
Tightening Torque
5 N.m screw clamp terminal
Rated Duty
continuous IEC 60947-4-1
Power Dissipation Per Pole
8 W
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2
Magnetic Tripping Current
448-448 A
Operating Altitude
9842.52 ft (3000 m)
Ambient Air Temperature For Storage
-40-80°C
Product Name
TeSys GV3 || TeSys Deca
Suitability For Isolation
yes IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Thermal Protection Adjustment Range
23-32 A IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Range
TeSys Deca
Device Short Name
GV3P
Device Application
motor protection
Ik Degree Of Protection
IK09 enclosure
Fire Resistance
960°C IEC 60695-2-11
Mechanical Robustness
shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5 to 300 Hz
Climatic Withstand
IACS E10

Description

Manual Starter, NEMA Size Not Applicable, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 32 A, Series TeSys Deca, Maximum Overload Relay Current Setting 32 A, Minimum Overload Relay Current Setting 23 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure, Overload Protection Type Thermal, Starter Style IEC, Terminal Connection Type Screw Clamp Terminals, IP Rating IP20, Resistance Properties Fire Resistant, Frequency 50/60 Hz
