Shop SCHNEIDER ELECTRIC

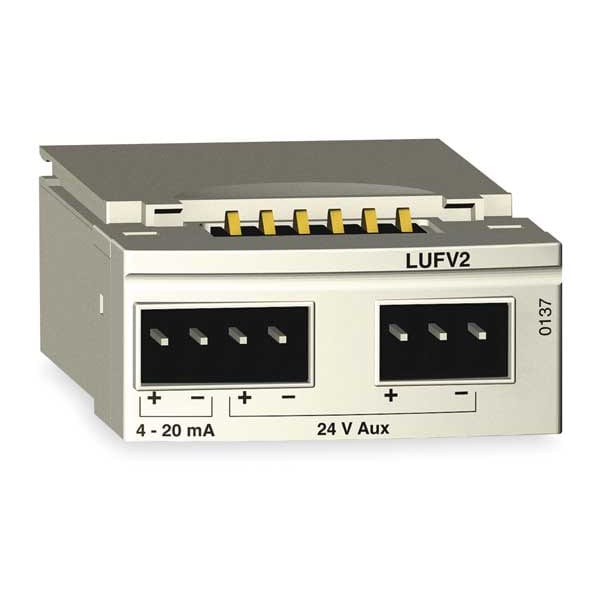

Module, Motor Load

  • Mfr # LUFV2

  • Zoro # G1591362

product price:  $239.99
/ea
Free Shipping & Returns

Key Features

For Use With
TeSys U-Line Starters
Features
Motor Load Indicator
Accessory Type
Function Module
Tightening Torque
0.2-0.25 N.m 2.5 mm flat
Function Available
indication of motor load
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LUFV2
Zoro #
G1591362
UPC #
785901276364
Country of Origin
Korea, Republic of

Details

Item
Function Module
For Use With
TeSys U-Line Starters
Features
Motor Load Indicator
Accessory Type
Function Module
Tightening Torque
0.2-0.25 N.m 2.5 mm flat
Function Available
indication of motor load
Mounting Location
front side
Type Of Output Signal
value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD || value of I average/Ir ratio within the range of 0 to 3 for LUCC
Analogue Output Current
4-20 mA
Connection Pitch
3.81 mm
Measurement Accuracy
+/- 10 % with multifunction control unit 1 % of Ir || +/- 6 % with advanced control unit
Connections - Terminals
screw clamp terminals 1 0.14-1 mm² flexible without cable end || screw clamp terminals 1 0.14-1 mm² rigid without cable end || screw clamp terminals 1 0.25-0.5 mm² flexible with cable end || screw clamp terminals 1 0.25-1 mm² flexible with cable end || screw clamp terminals 2 0.14-0.5 mm² rigid without cable end || screw clamp terminals 2 0.14-0.75 mm² flexible without cable end || screw clamp terminals 2 0.25-0.34 mm² flexible with cable end || screw clamp terminals 2 0.5-0.5 mm² flexible with cable end
Mounting Mode
plug-in
Device Short Name
LUF
Product Compatibility
LUCC || LUCM || LUCB || LUCD
Product Or Component Type
function module
Load Impedance Ohmic
100 Ohm typical || <= 500 Ohm
Associated Cable Type
AWG 26...AWG 16
Range
TeSys
[Us] Rated Supply Voltage
24 V DC
Standards
REACH, RoHS
Compatible with Series
TeSys Ultra

Description

Function Module, Accessory Type Function Module, Compatible with Series TeSys Ultra, Standards REACH, RoHS
