Shop SCHNEIDER ELECTRIC

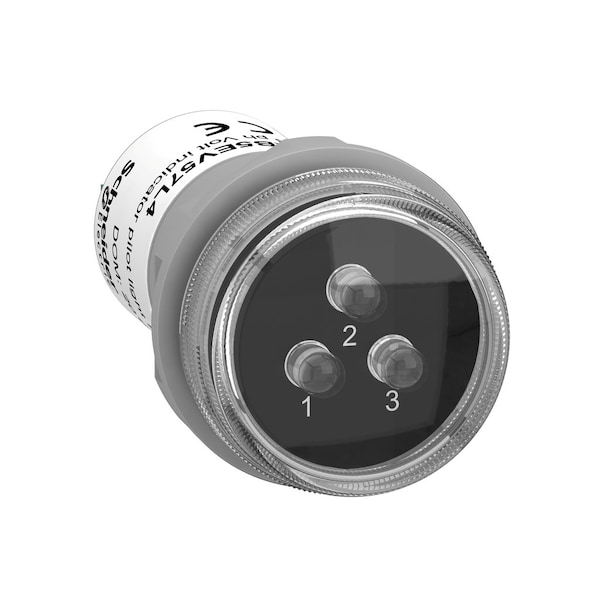

Monolithic pilot light, Harmony XB5, 3 phases Voltage, indicator with 3 LED, white, 400V AC

  • Mfr # XB5EV57L4

  • Zoro # G410090476

product price:
$
70.19
/ea

Key Features

Height
65.5 mm
Depth
77 mm
Standards
IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1
Phase
3 phase
Width
36 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB5EV57L4
Zoro #
G410090476
UPC #
-
Country of Origin
France

Dimensions

Height
65.5 mm
Depth
77 mm
Width
36 mm
Mounting Diameter
30 mm

Details

Item
PHASES 3 VOLTAGE INDICATOR PILOT LIGHT W
Standards
IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1
Phase
3 phase
Compatibility Code
XB5
Surge Withstand
1 kV IEC 61000-4-5
Service Life
100000 h at rated voltage and 25°C
Ip Degree of Protection
IP67 front face), IP20 back face)
Ambient Air Temperature For Storage
-40-70°C
Light Source
protected LED
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Ambient Air Temperature For Operation
-30-70°C
Product or Component Type
monolithic pilot light
[Uimp] Rated Impulse Withstand Voltage
1 kV IEC 61000-4-5
Bulb Base
integral LED
Range of Product
Harmony XB5
Device Presentation
monolithic product
Supply Voltage Limits
450-450 V AC
Cap/Operator or Lens Colour
clear
Connections - Terminals
Faston terminals 6.3 mm IEC 60947-1
Shape of Signaling Unit Head
round
Device Short Name
XB5
Current Consumption
2.6 mA
Electromagnetic Compatibility
electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Ik Degree of Protection
IK10 conforming to IEC 50102
Light Source Colour
white
Resistance To Fast Transients
2 kV IEC 61000-4-4
Fixing Collar Material
plastic
Bezel Material
plastic

Description

PHASES 3 VOLTAGE INDICATOR PILOT LIGHT W
